Hinge - Door - Front - Lower - LH - Remove And Replace: Remove

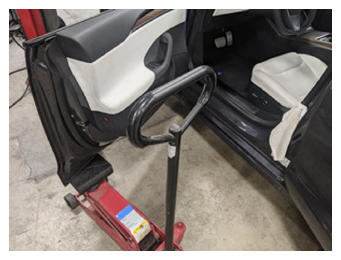

  1. Use a floor jack to support the LH front door.
    CAUTION: Protect painted surfaces with a soft surface.
    G15079358Courtesy of TESLA, INC.

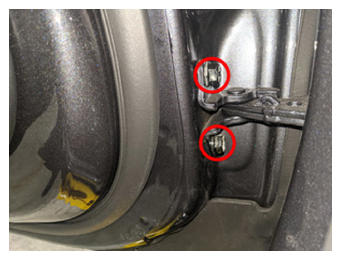

  2. Remove the bolts that attach the LH lower front door hinge to the door assembly.

    Tip: Use of the following tool(s) is recommended:

    • 13 mm combination wrench
    G15079359Courtesy of TESLA, INC.

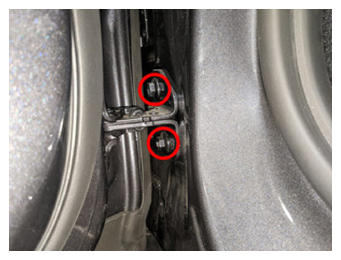

  3. Remove the bolts that attach the LH lower front door hinge to the body.

    Tip: Use of the following tool(s) is recommended:

    • 13 mm combination wrench
    G15079360Courtesy of TESLA, INC.

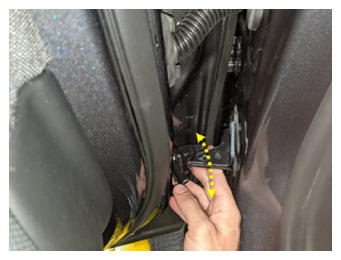

  4. Remove the LH lower front door hinge.
    G15079361Courtesy of TESLA, INC.
