Trim - Lower - Fascia - Rear - Remove And Replace: Install

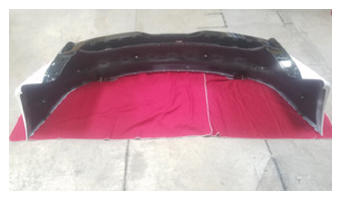

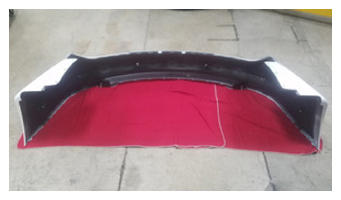

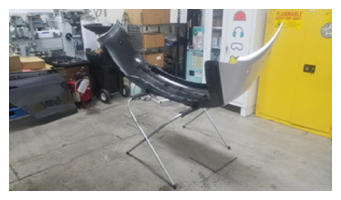

Place rear fascia assembly upside down on flat and protected surface

Courtesy of TESLA, INC.

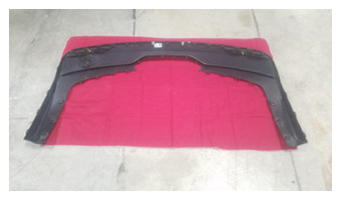

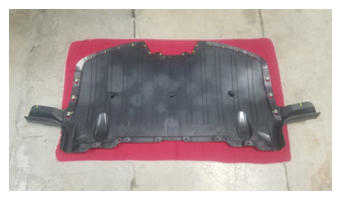

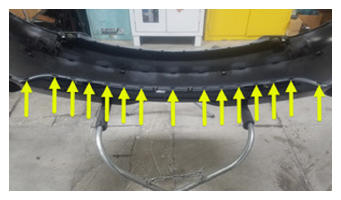

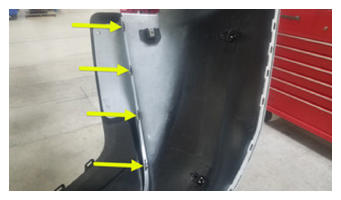

Position the rear lower fascia onto the rear fascia assembly, and then secure the tabs (x23) that attach the lower fascia to the assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

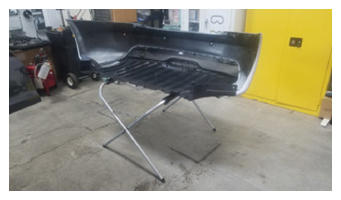

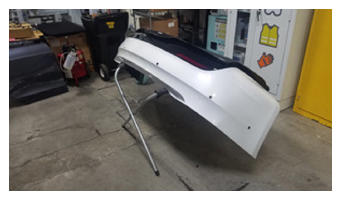

Place the rear fascia assembly upright on the workbench.

Courtesy of TESLA, INC.

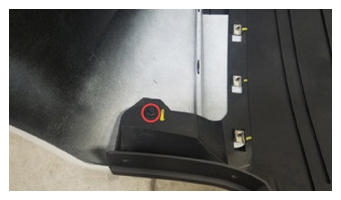

Install the bolts that attach the rear lower fascia to the rear fascia assembly.
Torque 5 N.m

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

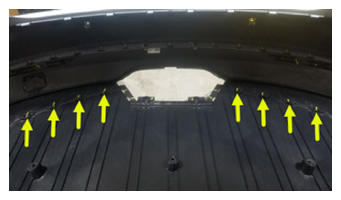

Position the rear diffuser onto rear fascia assembly, and then secure the tabs (x8) that attach the diffuser to the fascia.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the top LH and RH bolts that attach the rear diffuser to the rear fascia assembly.
Torque 5 N.m

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.
Place the rear fascia assembly upside down on workbench.

Courtesy of TESLA, INC.

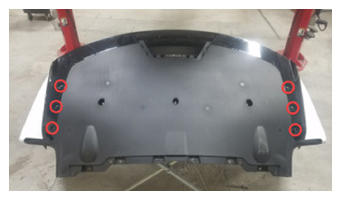

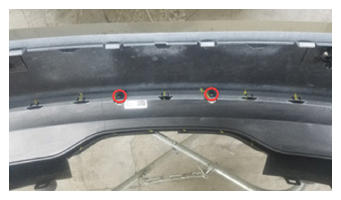

Install the bottom bolts (x6) that attach the rear diffuser to the rear fascia assembly.
Torque 5 N.m

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

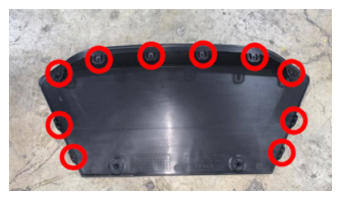

Position the tow hitch cover onto the rear fascia assembly, and then secure the tabs (x10) that attach the cover to the fascia.

Courtesy of TESLA, INC.

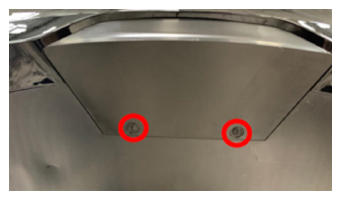

Install the bolts that attach the tow hitch cover to the rear fascia.
Tip: Use of the following tool(s) is recommended:
- Large flathead screwdriver
Courtesy of TESLA, INC.
Place the rear fascia assembly upright on workbench.

Courtesy of TESLA, INC.
Install the LH and RH rear reflex lamps. See Lamp - Reflex - Rear - LH (Remove and Replace) .
Install the rear fascia assembly. See Fascia Assembly - Rear (Remove And Install) .
