Grille - Fascia - Front - Remove And Replace: Install

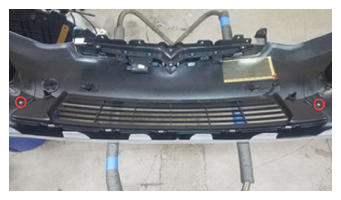

Position the front fascia grille onto the front fascia assembly, and then install the screws (x2) that attach the grille to the front fascia.
Torque 3 N.m

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 4 in extension
Courtesy of TESLA, INC.

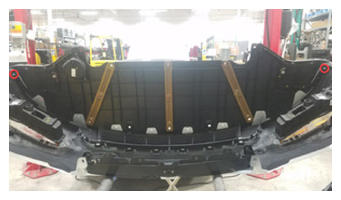

Position the valance onto the front fascia assembly, and then install the nuts (x2) that attach the valance to the fascia assembly.
Torque 3 N.m

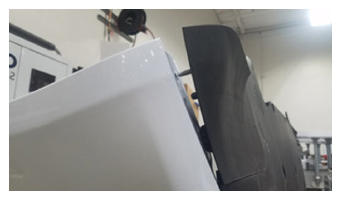

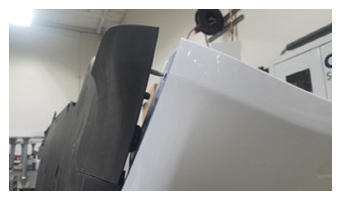

NOTE: Interlock the valance tabs with the fascia tabs.

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

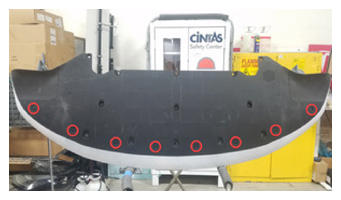

Install clips (x8) that attach the valance to the front fascia assembly.
NOTE: Hold the fascia tabs flush with the valance if necessary.

Courtesy of TESLA, INC.

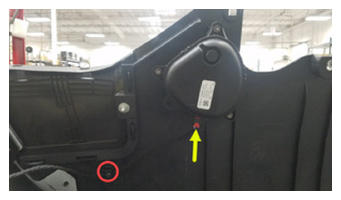

Install the clip that attaches the pedestrian warning speaker wiring harness to the front fascia assembly, connect the speaker electrical connector, and then engage the connector lock.

Courtesy of TESLA, INC.

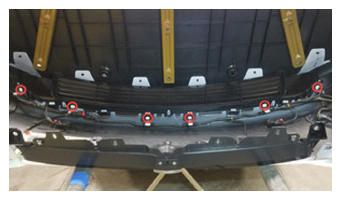

Position the wiring harness onto the front fascia grille, and then fasten the clips (x6) that attach the harness to the grille.

Courtesy of TESLA, INC.
Install the front fascia assembly. See Fascia Assembly - Front (Remove And Install) .
