Cover - Tow Hook - Rear - Remove And Replace: Install

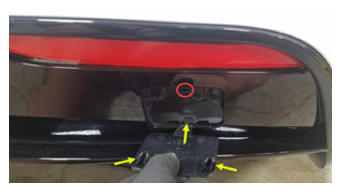

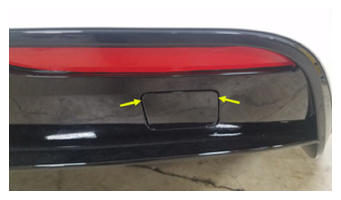

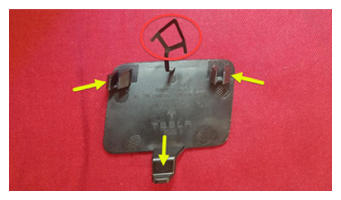

  1. Slide the tab into the slotted location on the rear fascia, connect the tether, and then press inward on the top corners of the rear tow hook cover to engage the clips.
    G15077194Courtesy of TESLA, INC.
    G15077195Courtesy of TESLA, INC.
    G15077196Courtesy of TESLA, INC.
