V Brace - Shock Tower - LH - Remove And Replace: Remove

  1. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  2. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  3. Remove the LH and RH wiper arms. See Wiper Arm - LH (Remove and Replace) .

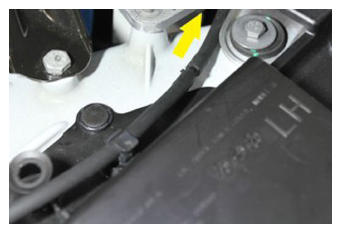

  4. Release the washer hose nozzle near the LH shock tower cover.
    G15078504Courtesy of TESLA, INC.
  5. Remove the LH and RH shock tower covers. See Cover - Shock Tower - LH (Remove and Replace) .
  6. Remove the wiper cowl screen panel. See Panel - Cowl Screen (Remove and Replace) .

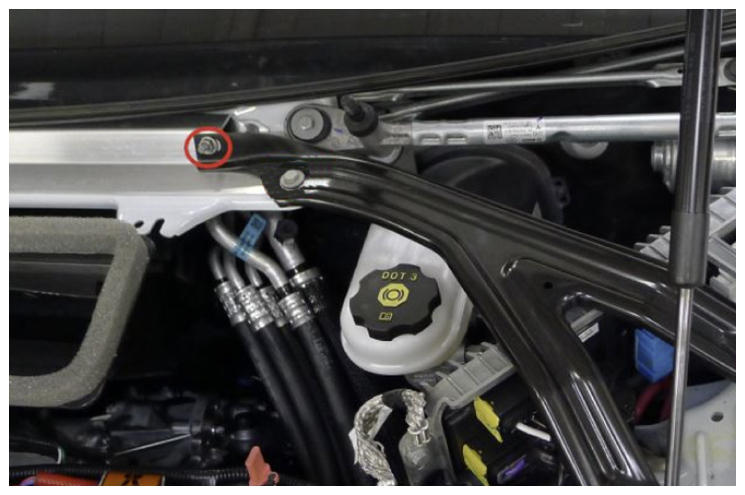

  7. Remove the nut that attaches the LH shock tower V-brace to the vehicle.

    Torque 9 N.m

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15078505Courtesy of TESLA, INC.

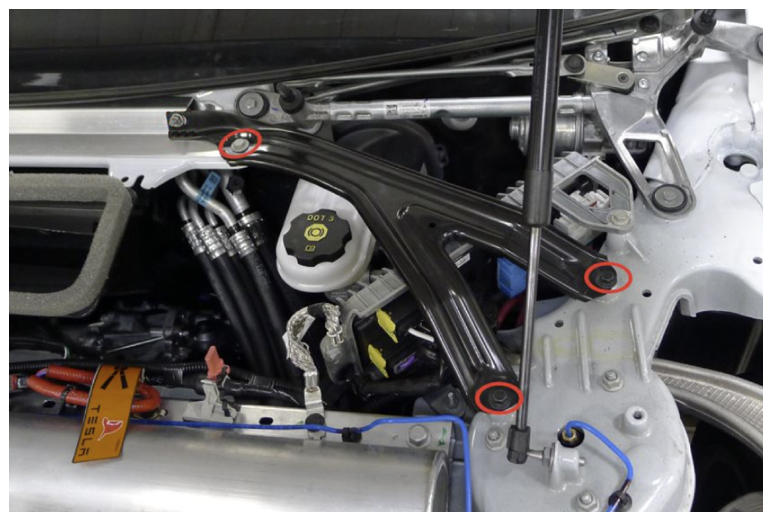

  8. Remove the bolts (x3) that attach the LH shock tower V-brace to the vehicle, and then remove the V-brace from the vehicle.

    Torque 18 N.m

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15078506Courtesy of TESLA, INC.
