Seal - Secondary - Rear Door - LH - Remove And Replace: Remove
- Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace)
.

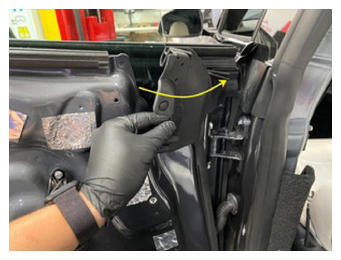

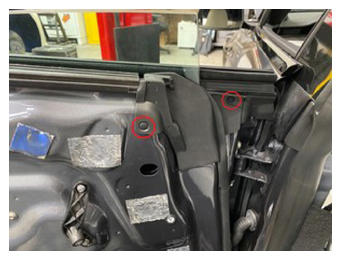

- Release the clips (x2) that attach the LH rear door seal to the door assembly, and then remove the seal from the assembly.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

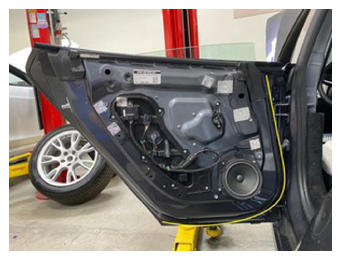

- Release the clips (x11) that attach the LH rear door secondary seal to the door assembly, and then remove the seal from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
