Seal - Secondary - Front Door - LH - Remove And Replace: Install

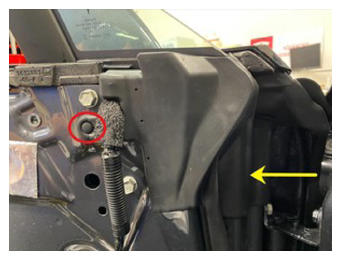

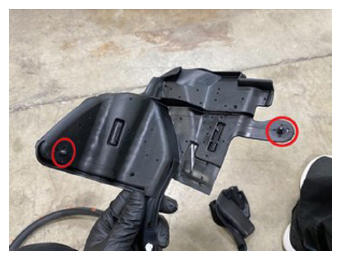

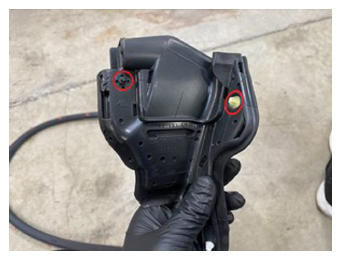

- Align the LH front door secondary seal onto the door assembly, and then install the clips (x19) that attach the seal to the door assembly.
 Courtesy of TESLA, INC.
|

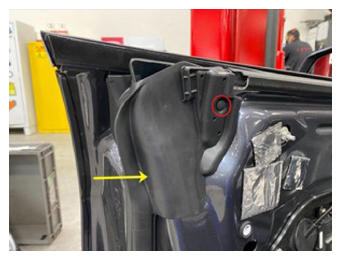

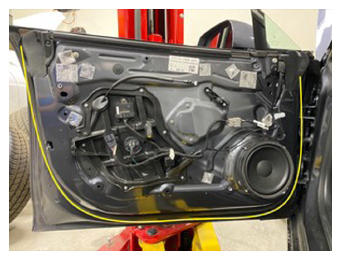

- Position the LH front door seal onto the door assembly, and then install the clips that attach the seal to the door assembly.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace)
.
- Install the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace)
.
