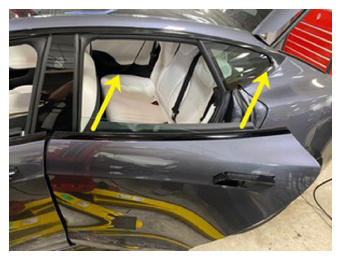

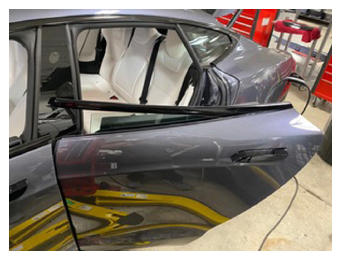

Align the LH rear door outer belt seal onto the door assembly, and then carefully press the seal downward to install it onto the door assembly.
NOTE:
Use P-80 Emulsion lubricant to lubricate the seal to aid in installation.
