Seal - Outer Belt - Front Door - LH - Remove And Replace: Remove

  1. Open the LH front door and fully lower the LH front window
  2. Starting from the rear edge, carefully lift and roll the LH front door outer belt seal outward to remove it from the door assembly.
    CAUTION: Be careful not to bend or damage the components.

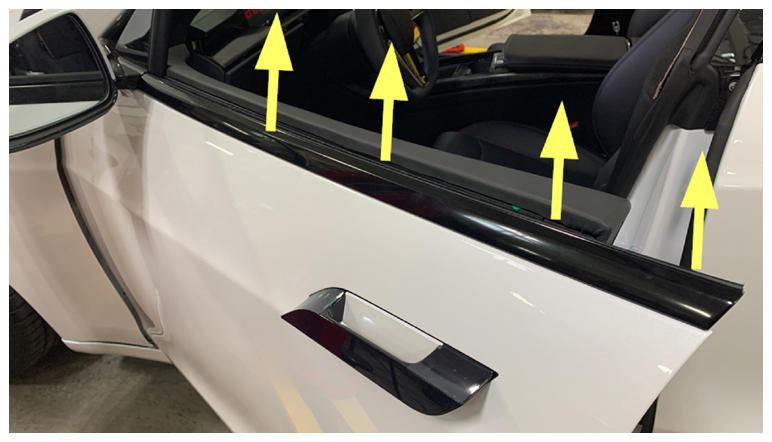

    G15080531Courtesy of TESLA, INC.

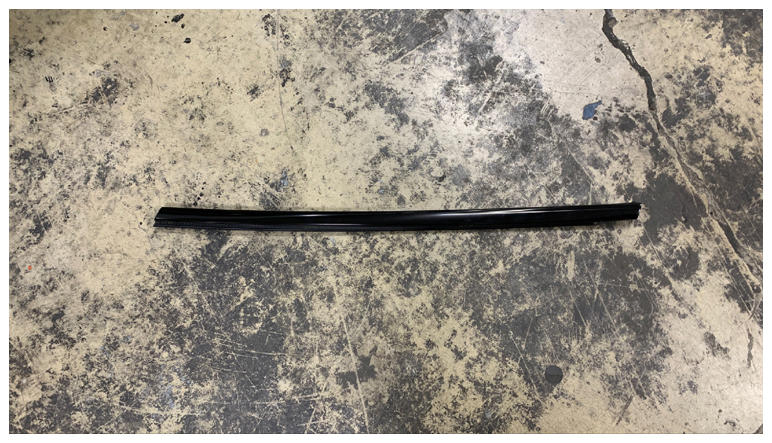

    G15080532Courtesy of TESLA, INC.
