Seal - Outer Belt - Front Door - LH - Remove And Replace: Install

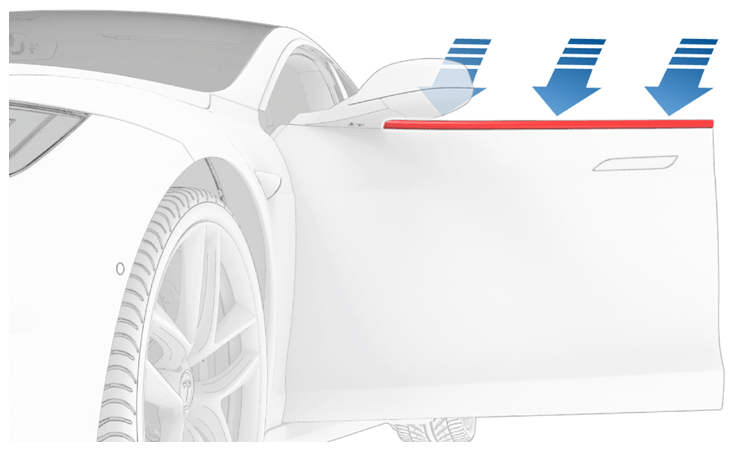

  1. Install the LH front door outer belt seal onto the LH front door assembly.
    NOTE: Use P-80 Emulsion lubricant to lube the seal for easy installation and gap adjustment.
    G15080533Courtesy of TESLA, INC.
  2. Raise the LH front window and close the LH front door.
