Seal - Hood - Remove And Replace: Install

  1. Install the hood seal on the vehicle.
    NOTE: Line up the seal marking with the center of the frunk. Verify seal is properly seated and aligned.

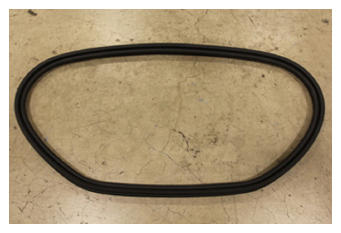

    G15080508Courtesy of TESLA, INC.

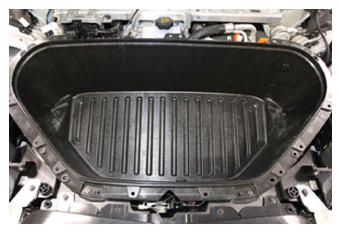

    G15080506Courtesy of TESLA, INC.

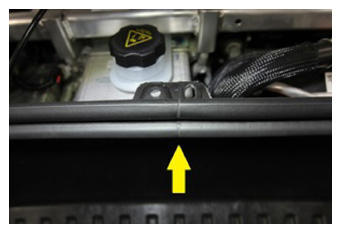

    G15080505Courtesy of TESLA, INC.
  2. Install the front underhood apron. See Underhood Apron - Front (Remove And Replace) .
    NOTE: 10x clips
  3. Install the rear underhood apron. See Underhood Apron - Rear (Remove And Replace) .
    NOTE: 10x clips
  4. Close LH front door
