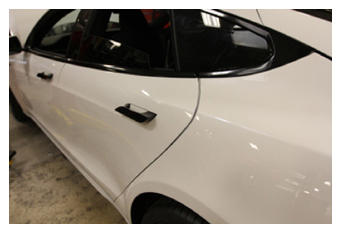

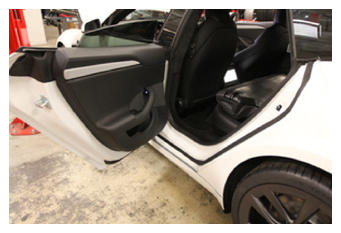

- Open LH rear door
 Courtesy of TESLA, INC.
|

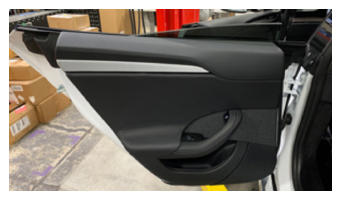

- Lower LH rear window
 Courtesy of TESLA, INC.
|

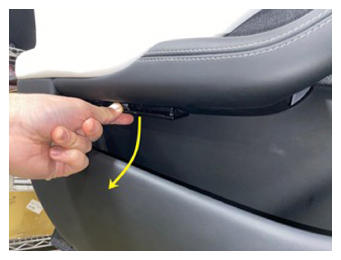

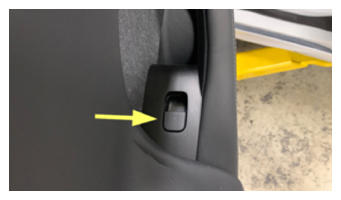

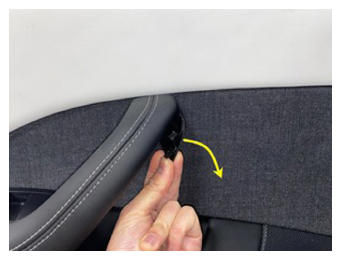

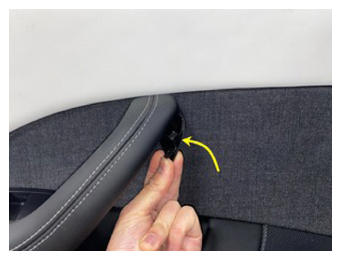

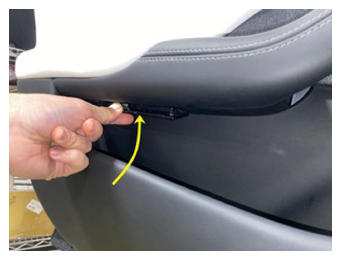

- Remove service covers from LH rear door panel
NOTE:
2x covers
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

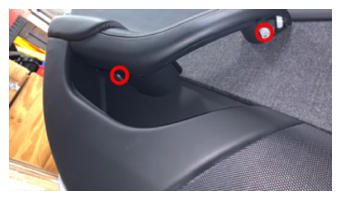

- Remove fasteners securing LH rear door panel under armrest and door trim handle
NOTE:
2x bolts, T30, 6 N.m
 Courtesy of TESLA, INC.
|

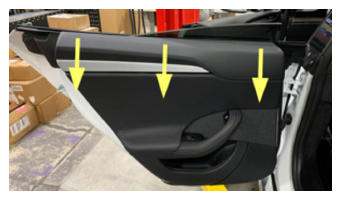

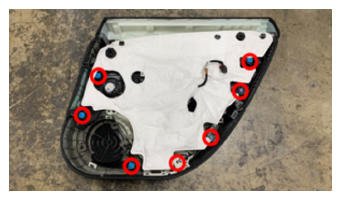

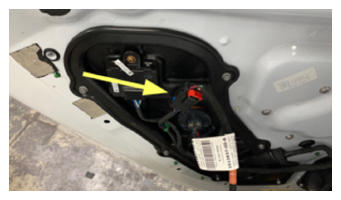

- Remove LH rear door panel assembly
NOTE:
7x clips, 1x connector, Pull bottom of door panel to release clips then lift panel up to disengage from inner belt seal, Pull red tab to disengage lock then disconnect door harness
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

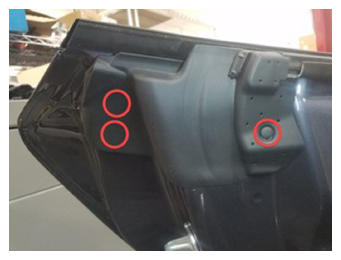

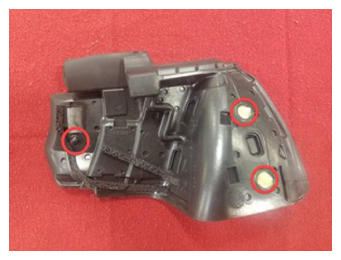

- Remove LH rear door C-pillar margin seal
NOTE:
3x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

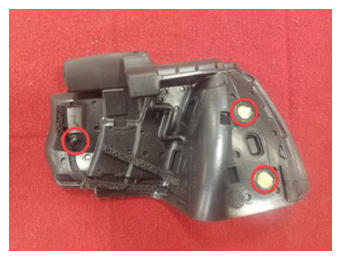

- Install LH rear door C-pillar margin seal
NOTE:
3x clips
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install LH rear door panel assembly
NOTE:
7x clips, 1x connector, Connect door harness then engage locking tab, Slide top portion of panel into door seal first, then swing bottom into place, Ensure all clips and retainers are seated
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install fasteners securing door panel to rear door
NOTE:
2x bolts, T30, 6 N.m
 Courtesy of TESLA, INC.
|
- Install service covers onto LH rear door
NOTE:
2x covers
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Raise LH rear window
 Courtesy of TESLA, INC.
|
- Close LH rear door
 Courtesy of TESLA, INC.
|
