Seal - Door - Rear - Margin - B Pillar - LH - Remove And Replace: Remove

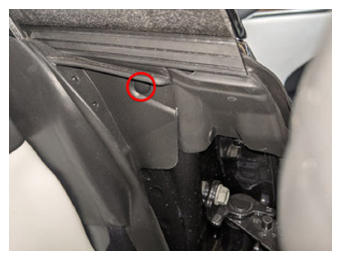

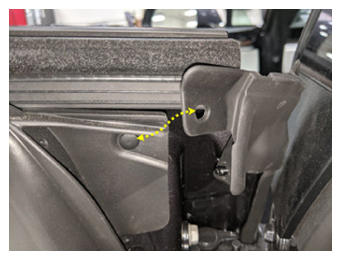

- Release the clip that attaches the top corner of LH B-pillar margin rear door seal to the LH rear door, and then release the top edge of the margin seal from the door assembly.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

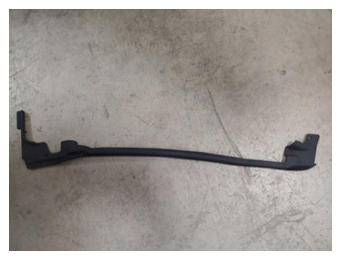

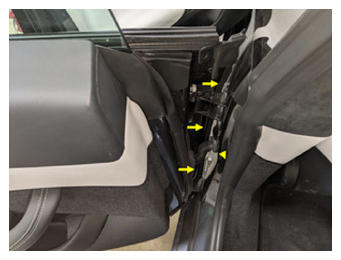

- Release the clips (x2) and adhesive that attach LH B-pillar margin rear door seal to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
