Seal - Door - Rear - Margin - B Pillar - LH - Remove And Replace: Install

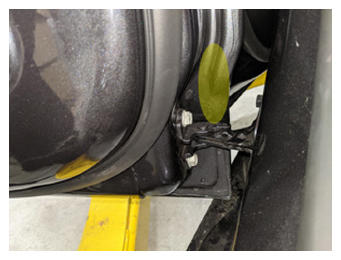

Use IPA wipes to remove any dirt or residual adhesive from the mating surface on the LH rear door.
NOTE: Allow 1 minute of dry time.

Courtesy of TESLA, INC.

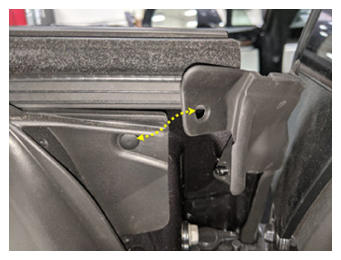

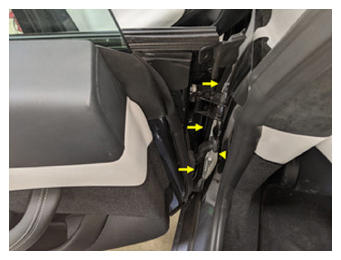

Position the LH B-pillar margin rear door seal onto the LH rear door, fasten the clips (x2), and then remove the adhesive backing and adhere the seal onto the door assembly.
NOTE: Replace double sided tape as necessary.

Courtesy of TESLA, INC.

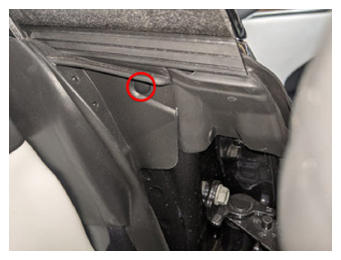

Place the top edge of the LH B-pillar margin rear door seal into position, and then fasten the clip that attaches the top corner of margin seal to the door assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
