Seal - Door - Front - Margin - A Pillar - LH - Remove And Replace: Remove

  1. Release the clips (x3) that attach the A-pillar margin front door seal to the LH front door.

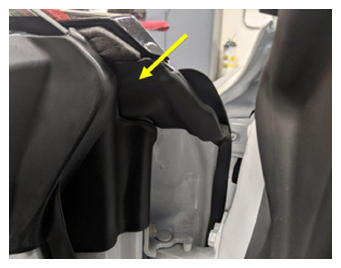

    G15080458Courtesy of TESLA, INC.

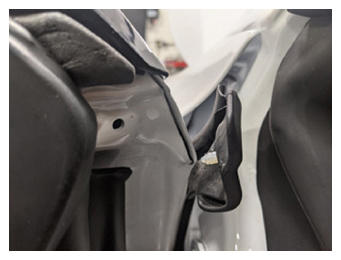

    G15080459Courtesy of TESLA, INC.

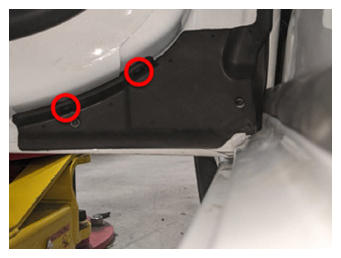

    G15080460Courtesy of TESLA, INC.
  2. Remove the A-pillar margin front door seal from the LH front door.
    NOTE: Partially open and close the door as needed to access the seal.

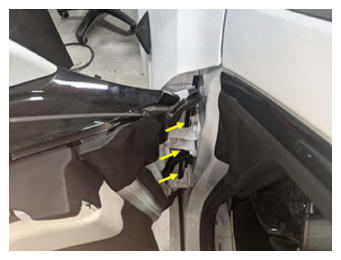

    G15080461Courtesy of TESLA, INC.
