Seal - Body - Side - Rear - Secondary - LH - Remove And Replace: Install

  1. Use IPA wipes to clean the surface area of the LH secondary rear side body seal.
    NOTE: Allow 1 min of dry time.
  2. Position the LH secondary rear side body seal onto the rocker panel, fasten the clip, and then remove the adhesive backing and adhere the seal onto the rocker panel.

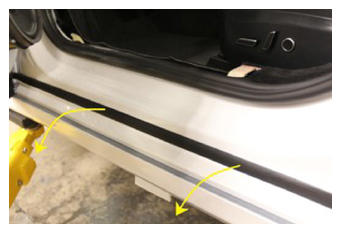

    G15080453Courtesy of TESLA, INC.

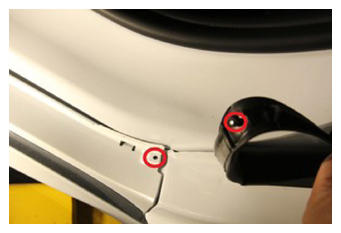

    G15080454Courtesy of TESLA, INC.

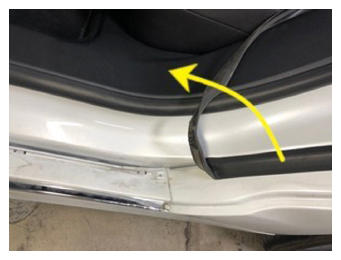

    G15080455Courtesy of TESLA, INC.
  3. Position the LH secondary rear side body seal onto the body, fasten the clip, and then remove the adhesive backing and adhere the seal onto the body.

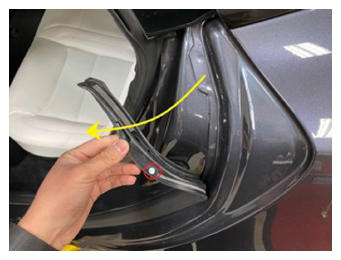

    G15080456Courtesy of TESLA, INC.
