Seal - Body - Side - Rear - Primary - LH - Remove And Replace: Remove

  1. Remove the LH B-pillar applique. See Applique - B-Pillar - LH (Remove And Replace) .
  2. Remove the clip that attaches the LH primary rear side body seal to the B-Pillar.
    G15080422Courtesy of TESLA, INC.

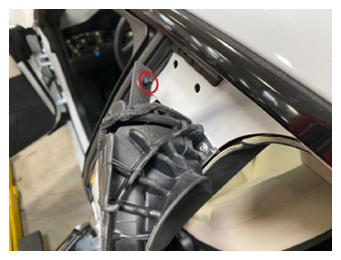

    G15080423Courtesy of TESLA, INC.
  3. Remove the LH primary rear side body seal from the vehicle.

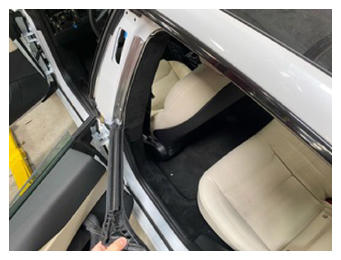

    G15080424Courtesy of TESLA, INC.

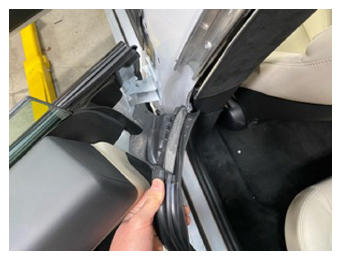

    G15080425Courtesy of TESLA, INC.

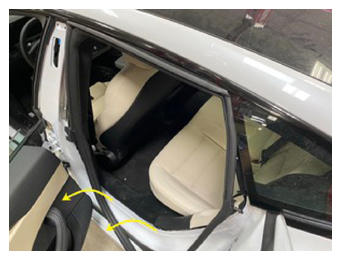

    G15080426Courtesy of TESLA, INC.

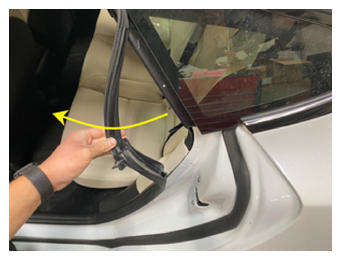

    G15080427Courtesy of TESLA, INC.
    G15080428Courtesy of TESLA, INC.
    G15080429Courtesy of TESLA, INC.
