Seal - Body - Side - Front - Primary - LH - Remove And Replace: Install
- Use IPA wipes to clean any residue from LH primary front side body seal area on the body.NOTE:
Allow at least 1 min for dry time.

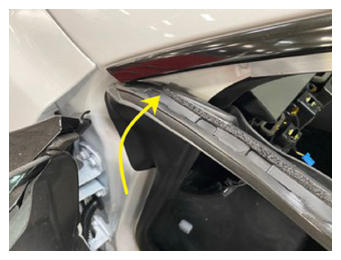

- Align the LH primary front side body seal onto the vehicle, secure the clips (x5) to the body, and then remove the adhesive backing and adhere the seal to the body along the installation path.NOTE:
Make sure the seal is seated properly along the bright molding and interior trim.
- Install the LH B-pillar applique. See Applique - B-Pillar - LH (Remove And Replace)
.NOTE:
It is not necessary to perform service redeploy after installation.
- Recalibrate the LH window. See Window Regulator Recalibrate
- Confirm that the window operates correctly and without any abnormal noise.
- Connect a laptop with Toolbox 3 to the vehicle.
- In Toolbox, click the Dashboards tab, and then search for "Service Tools".
- Click the Clear Calibration Pillars
button.NOTE:
Confirm that there is a successfully cleared calibration message.

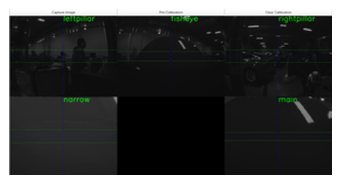

- Exit the vehicle, and then click DAS Image Capture
.NOTE:
The vehicle needs to be unoccupied in order for the ride height to maintain specifications.
- Review the images and make sure all cameras able to capture image correctly
- Disconnect Toolbox 3 and remove the laptop from the vehicle.
- Inform the customer that the vehicle will need to be driven to complete the calibration procedure. During this time, DAS functions will be completely unavailable.
