Closeout Panel - Latch - C-Pillar - LH - Remove And Replace: Remove

  1. Move the front seats forward.
  2. Remove LH and RH 2nd row seat side bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
  3. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
  4. Fold the LH 2nd row seat to the down position.
    NOTE: Protect the 2nd row seat back before lowering.
  5. Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace) .
  6. Release the clips (x3) that attach the LH C-pillar mid and lower BIW bracket to the vehicle, and then remove the bracket from the vehicle.

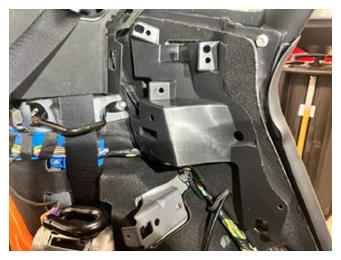

    G15080369Courtesy of TESLA, INC.

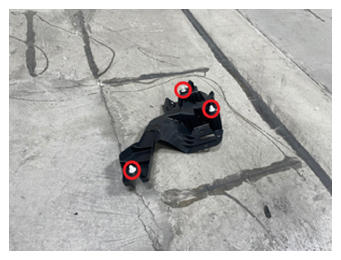

    G15080370Courtesy of TESLA, INC.

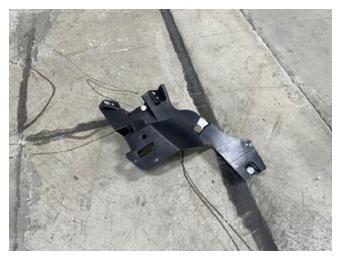

    G15080371Courtesy of TESLA, INC.
  7. Fold the LH rear wheelhouse absorber aside for access to the LH C-pillar latch closeout panel, and then release the latch cable from the wheelhouse absorber.

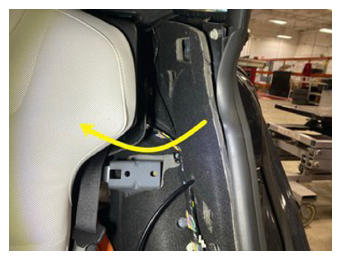

    G15080372Courtesy of TESLA, INC.
  8. Remove the LH C-pillar latch closeout panel from the vehicle.

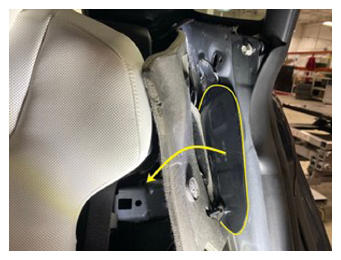

    G15080373Courtesy of TESLA, INC.
