Closeout Panel - Latch - C-Pillar - LH - Remove And Replace: Install

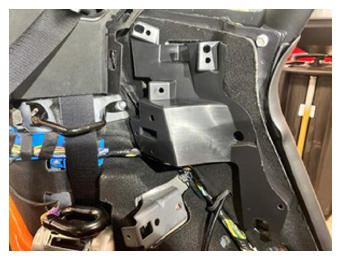

- Install the LH C-pillar latch closeout panel for the LH rear door latch assembly.
 Courtesy of TESLA, INC.
|

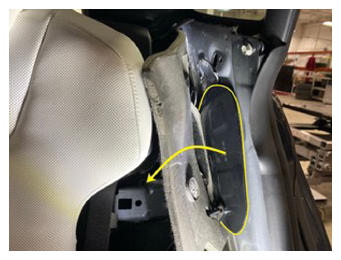

- Fold the LH rear wheelhouse absorber to its original position, and then install the release cable onto wheelhouse absorber.
 Courtesy of TESLA, INC.
|

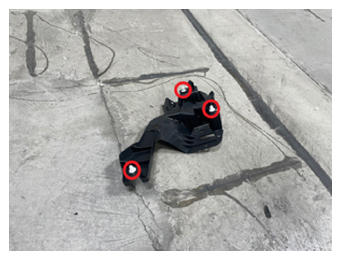

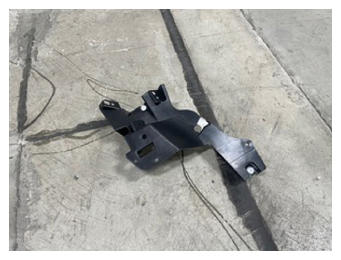

- Install the LH C-pillar mid and lower BIW bracket.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace)
.

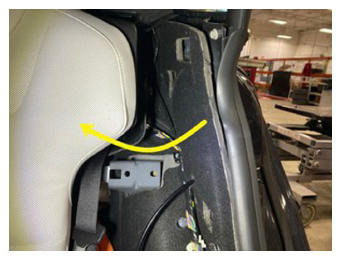

- Fold the LH 2nd row seat to the up position, and then remove the seat cushion protection.
- Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace)
.
- Install LH and RH 2nd row seat side bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace)
.
- Move the front seats to the original positions.
