Closeout Panel - Door - Rear - LH - Remove And Replace: Install

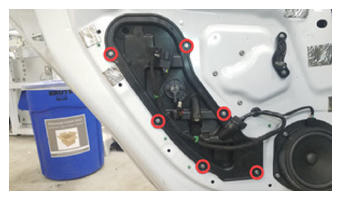

Install the LH rear door closeout panel onto the LH rear door, and then install the bolts (x6) that attach the closeout panel to the door assembly.
Torque 4 N.m

Tip: Use of the following tool(s) is recommended:
- 8 mm socket
- Flex head ratchet/flex head torque wrench
- 2 in extension
Courtesy of TESLA, INC.
Position the wiring harness onto the LH rear door closeout panel, and then install the clips (x3) that attach the harness to the closeout panel.
NOTE: Make sure there is an audible click to fully engage the clip.

Courtesy of TESLA, INC.

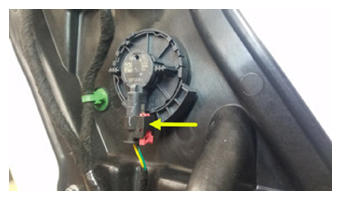

Connect the LH rear door pressure sensor electrical connector, and then engage the connector lock.

Courtesy of TESLA, INC.

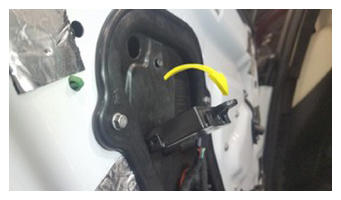

Install the LH rear door handle controller onto the closeout panel assembly.

Courtesy of TESLA, INC.

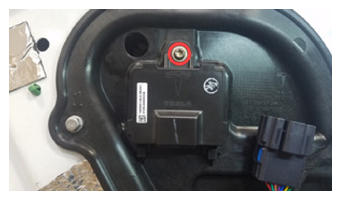

Install the screw that attaches the LH rear door handle controller to the LH rear door closeout panel.
Torque 2 N.m

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 2 in extension
Courtesy of TESLA, INC.

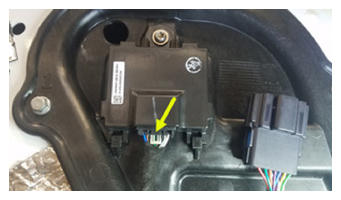

Connect the LH rear door handle controller electrical connector, and then engage the connector lock.

Courtesy of TESLA, INC.

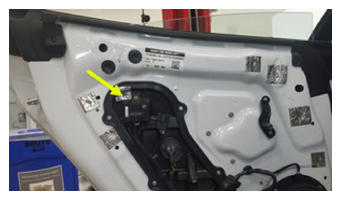

Install the butyl patch that covers the closeout panel opening.

Courtesy of TESLA, INC.
Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .
