Closeout Panel - Door - Front - LH - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace)
- Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace)

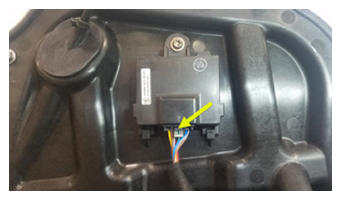

- Pull the white tab to release the connector lock, and then disconnect the LH front door handle controller electrical connector.

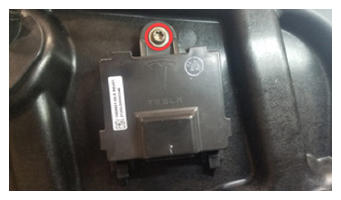

- Remove the screw that attaches the LH front door handle controller to the LH front door closeout panel.
Torque 2 N.m
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 2 in extension

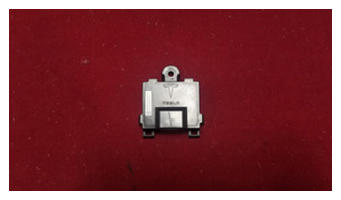

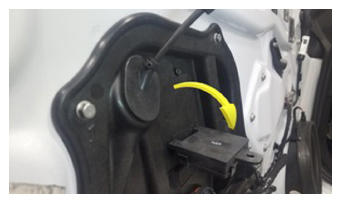

- Release the retainer tabs that attach the LH front door handle controller to the LH front door closeout panel assembly, and then remove the controller from the assembly.

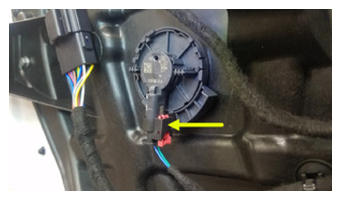

- Disconnect the LH front door pressure sensor electrical connector.NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

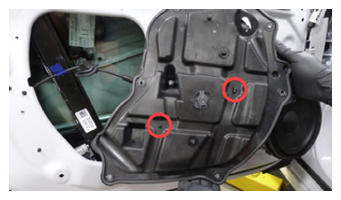

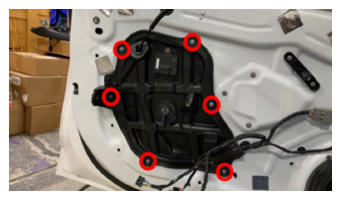

- Remove the bolts (x6) that attach the LH front door closeout panel to the door assembly.
Tip: Use of the following tool(s) is recommended:
- 8 mm socket
- 2 in extension

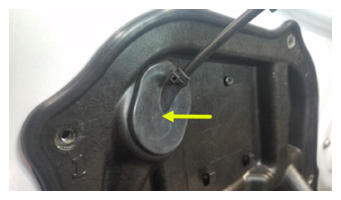

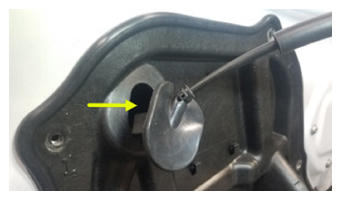

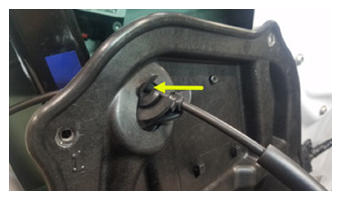

- Release the latch cable grommet from the closeout panel assembly, and then route the grommet and cable through the opening.

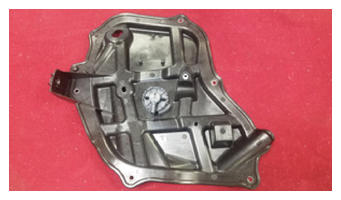

- Release the clips (x2) that attach the wiring harness to the LH front door closeout panel assembly, and then remove the closeout panel from the vehicle.NOTE: Release clips from back of the panel to prevent damage.
