Carrier - Seal - Rear - B-Pillar - LH - Remove And Replace: Install

  1. Position the LH rear upper body side B-Pillar carrier onto the vehicle, and then install the rivets (x2) that secure the carrier to the body.
    NOTE: Ensure the foam strip is against the body.

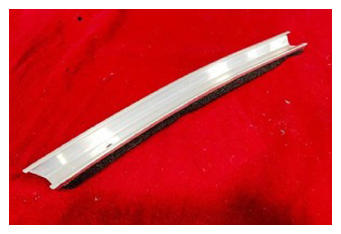

    G15080321Courtesy of TESLA, INC.
    G15080322Courtesy of TESLA, INC.
    G15080323Courtesy of TESLA, INC.
    G15080324Courtesy of TESLA, INC.
  2. Align the front portion of the LH rear body side primary seal onto the vehicle, peel off the back side cover for the double sided adhesive, adhere the seal onto the body panel, and then secure the clip that attaches the seal to the body.
    NOTE: Ensure the rear primary body seal is seated properly along the bright molding, quarter glass and interior trim.
    G15080325Courtesy of TESLA, INC.
    G15080326Courtesy of TESLA, INC.
    G15080327Courtesy of TESLA, INC.
    G15080328Courtesy of TESLA, INC.
  3. Install the LH B-pillar applique. See Applique - B-Pillar - LH (Remove and Replace) .
