Carrier - Seal - Front - B-Pillar - LH - Remove And Replace: Install

  1. Position the LH front upper body side B-Pillar carrier onto vehicle, and then install the rivets (x2) that secure the carrier to the body.
    NOTE: Ensure the foam strip is against the body.
    G15080308Courtesy of TESLA, INC.
    G15080309Courtesy of TESLA, INC.
  2. Align the rear portion of the LH front body side primary seal onto the vehicle, and then secure the clips (x2) that attach the seal to the body.
    NOTE: Ensure the front primary seal is seated properly along the front upper body side B-Pillar carrier.
    G15080310Courtesy of TESLA, INC.

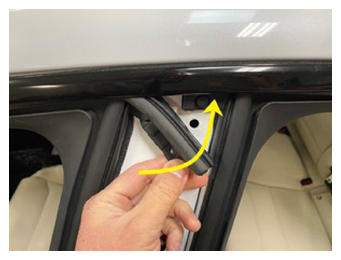

    G15080311Courtesy of TESLA, INC.
    G15080312Courtesy of TESLA, INC.
  3. Install the LH B-pillar applique. See Applique - B-Pillar - LH (Remove and Replace) .
