- Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace)
.
- Remove the LH front door panel. See Panel - Door Trim - Front - LH (Remove and Replace)
.

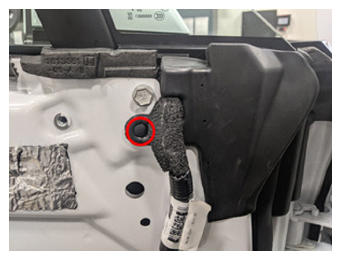

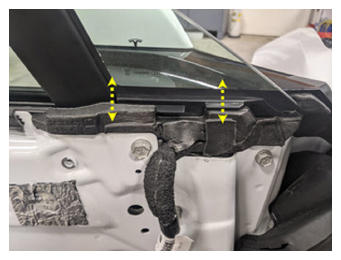

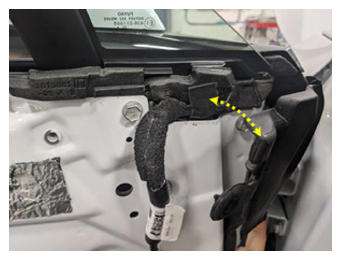

- Release the clip that attaches the top corner of the LH front door seal to the door assembly.
CAUTION:
Be careful not to damage the seal tucked behind the fixed glass.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

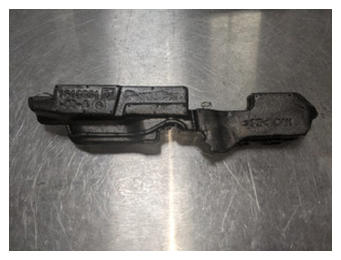

- Remove the LH front door inner acoustic foam.
NOTE:
Take note of any additional NVH/fitment countermeasures in the area.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
