Switch - Liftgate - Interior - Remove And Replace: Remove

  1. Open the liftgate.
  2. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  3. Release the tabs (x2) that attach the interior liftgate switch to the lower liftgate trim, and then remove the switch from the trim.

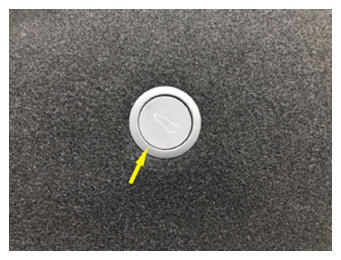

    G15079824Courtesy of TESLA, INC.

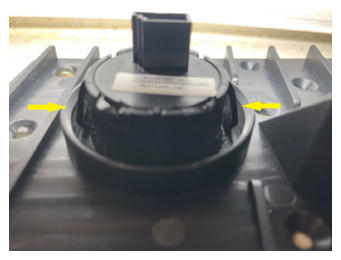

    G15079825Courtesy of TESLA, INC.
