Striker - Liftgate - Remove And Replace: Install

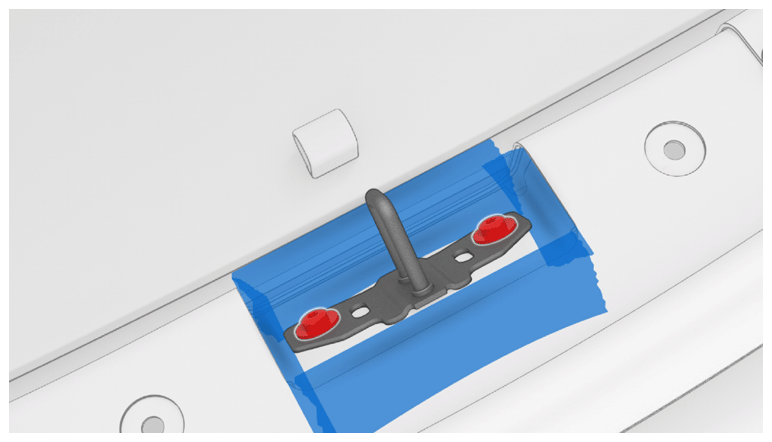

  1. Using the masking tape as a guide, install the liftgate striker to the vehicle, but do not fully torque the bolts.
    G15079821Courtesy of TESLA, INC.
  2. Close the liftgate and use the gap and flush tool to verify the liftgate alignment is within specification.
  3. Open the liftgate and adjust the striker position as necessary.
  4. Torque the bolts that attach the liftgate striker to the vehicle.

    Torque 10 N.m

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    • 6 in extension
    • Ratchet/torque wrench
  5. Remove masking tape around the liftgate striker.
  6. Position the six clips that attach the sill panel to the vehicle, and then install the sill panel to the vehicle.
    G15079822Courtesy of TESLA, INC.
  7. Close the liftgate.
