Striker - Door - Front - LH - Remove And Replace: Remove

  1. Open the LH front door.

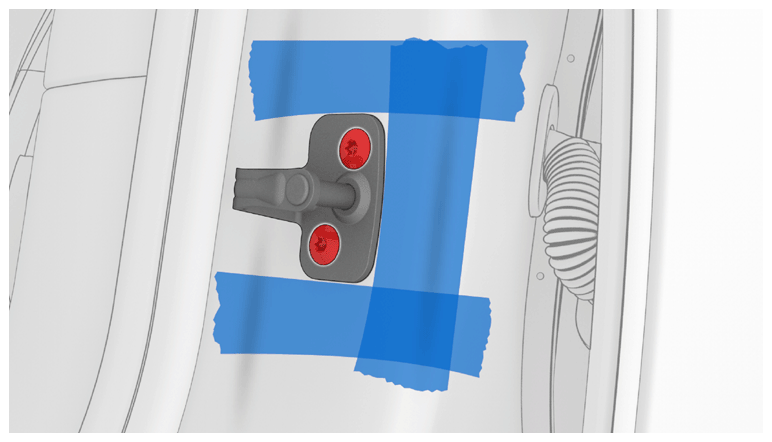

  2. Use masking tape to mark the position of the door striker to the vehicle.
  3. Remove the two bolts that attach the door striker to the vehicle, and then remove the door striker from the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • Torx T40 socket
    • Ratchet/torque wrench
    G15079812Courtesy of TESLA, INC.
