Pinch Sensor - Liftgate - LH - Remove And Replace: Remove

  1. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
  2. Disconnect the LH liftgate pinch sensor electrical connector.
    NOTE: Rotate the connector to access the release tab.
    G15079796Courtesy of TESLA, INC.

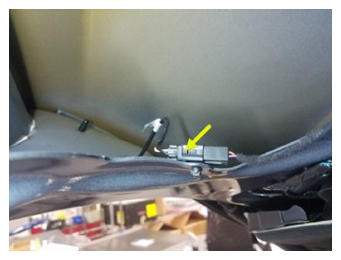

    G15079797Courtesy of TESLA, INC.
  3. Remove the clips (x6) that attach the LH liftgate pinch sensor assembly to the liftgate.
    G15079798Courtesy of TESLA, INC.

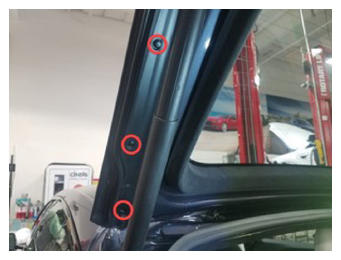

    G15079799Courtesy of TESLA, INC.
  4. Release the LH liftgate pinch sensor grommet, and then remove the harness from the liftgate.

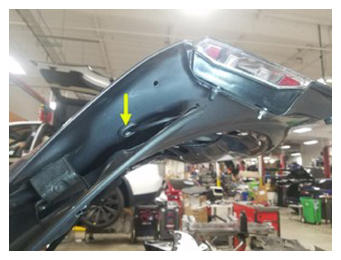

    G15079800Courtesy of TESLA, INC.
    G15079801Courtesy of TESLA, INC.
  5. Maneuver the LH liftgate pinch sensor assembly around the wedge bumper and then away from the liftgate to remove it from the vehicle.
    G15079802Courtesy of TESLA, INC.

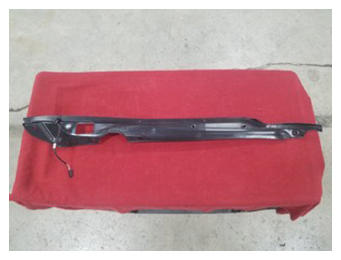

    G15079803Courtesy of TESLA, INC.
