Pinch Sensor - Liftgate - LH - Remove And Replace: Install

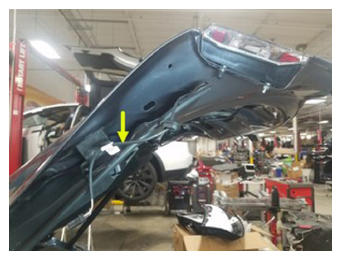

- Position the LH liftgate pinch sensor assembly into the vehicle.
 Courtesy of TESLA, INC.
|

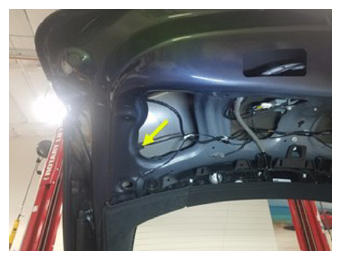

- Install the LH liftgate pinch sensor harness onto the liftgate, and then secure the grommet.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

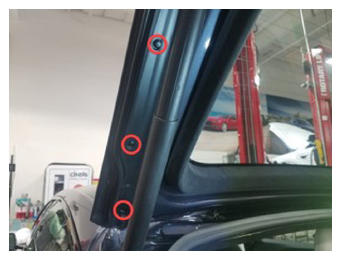

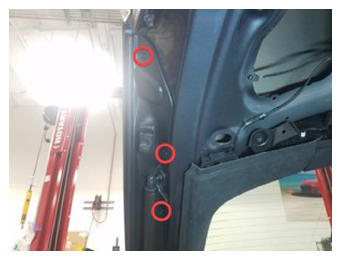

- Install clips (x6) that attach the LH liftgate pinch sensor assembly to the liftgate.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

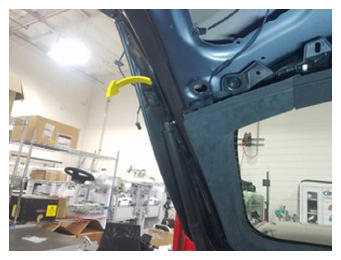

- Connect the LH liftgate pinch sensor electrical connector.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace)
.
