Latch - Door - Rear - LH - Remove And Replace: Remove

  1. Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  2. Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
  3. Remove LH and RH 2nd row seat side bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
  4. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
  5. Fold the LH 2nd row seat to the down position.
    NOTE: Protect the 2nd row seat back before lowering.
  6. Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace) .
  7. Remove LH middle C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace) .
  8. Remove the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace) .

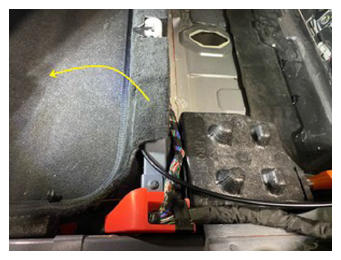

  9. Fold the LH rear cabin carpet aside for access to the release cable.
    G15079770Courtesy of TESLA, INC.

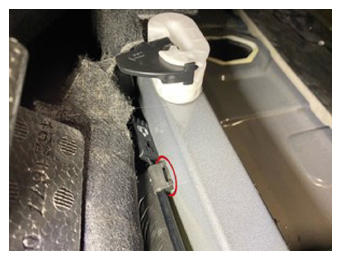

  10. Release the clip that attaches the LH rear door release cable to the body.
    G15079771Courtesy of TESLA, INC.

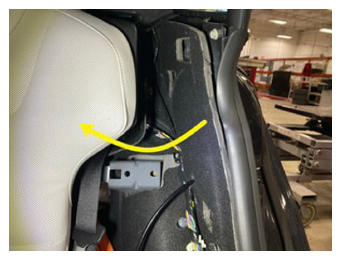

  11. Fold the LH rear wheelhouse absorber aside for access to the closeout panel for LH rear door latch assembly, and then release the latch cable from the wheelhouse absorber.
    G15079772Courtesy of TESLA, INC.

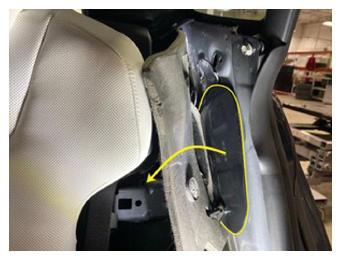

  12. Remove the closeout panel for the LH rear door latch assembly.
    G15079773Courtesy of TESLA, INC.

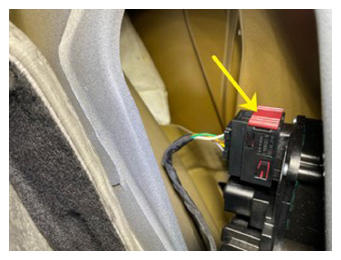

  13. Release the locking tab, and then disconnect the LH rear door latch assembly electrical connector.
    G15079774Courtesy of TESLA, INC.

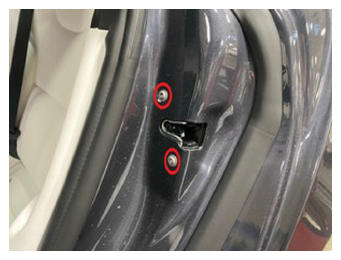

  14. Remove and discard the bolts (x2) that attach the LH rear door latch to the body, and then remove the latch from the vehicle.

    Torque 10 N.m

    Tip: Use of the following tool(s) is recommended:

    • Torx T30 socket
    G15079775Courtesy of TESLA, INC.
