Latch - Door - Rear - LH - Remove And Replace: Install

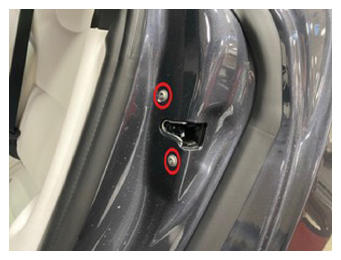

- Position the LH rear door latch into the vehicle, and install new bolts (x2) that attach the door latch to the body.
Torque 10 N.m
Tip: Use of the following tool(s) is recommended:
- Torx T30 socket

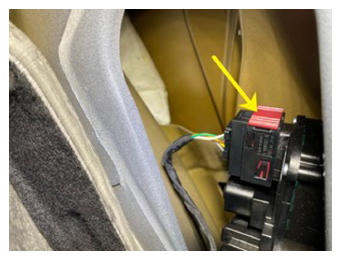

- Connect the LH rear door latch assembly electrical connector, and then engage the connector lock.

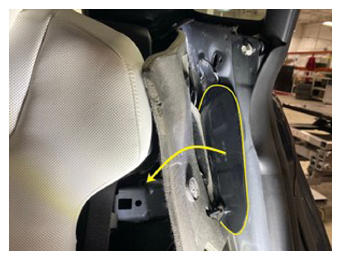

- Install the closeout panel for the LH rear door latch assembly.

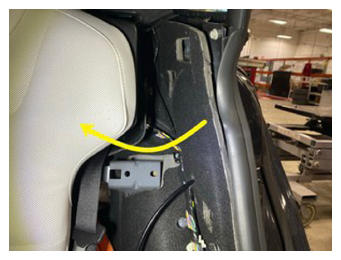

- Fold the LH rear wheelhouse absorber to its original position, and then install the release cable onto wheelhouse absorber.

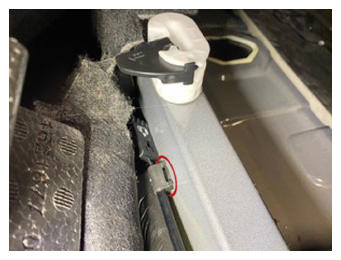

- Install the clip that attaches the LH rear door release cable to the body.

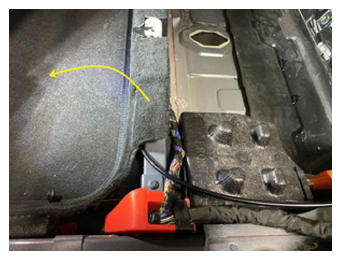

- Fold the LH rear cabin carpet to its original position.
- Install the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Remove and Replace) .
- Install LH middle C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace) .
- Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace) .
- Fold the LH 2nd row seat to the up position, and then remove the seat cushion protection.
- Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
- Install LH and RH 2nd row seat side bolsters. See Bolster - Outer - Seat - 2nd Row - LH (Remove and Replace) .
- Move the front seats to the original positions.
- Install the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
- Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
