Cover - Striker - Trunk - Remove And Replace: Install

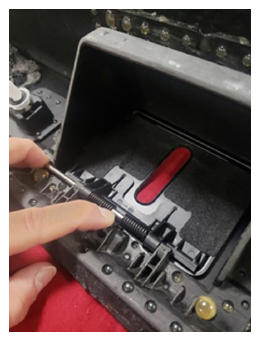

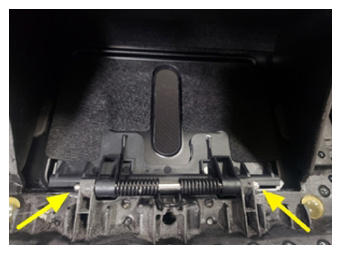

  1. Position the trunk striker cover into the trunk sill trim, and then position the spring on top while holding the striker cover in place as the pin is aligned to be installed. Push the pin completely through the spring to attach the striker cover.
    G15079723Courtesy of TESLA, INC.
    G15079724Courtesy of TESLA, INC.
  2. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
  3. Install the trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  4. Close the liftgate.
