Actuator - Latch - Hood (Single Actuator System) - Remove And Replace: Remove

  1. Open the LH front door.
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  3. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  4. Remove the front underhood apron. See Underhood Apron - Front (Remove and Replace) .
  5. Remove underhood storage unit. See Underhood Storage Unit (Remove and Replace) .
  6. Release the clips that attach the FEM harness to the front end carrier assembly.

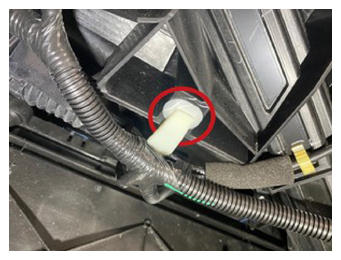

    G15079700Courtesy of TESLA, INC.

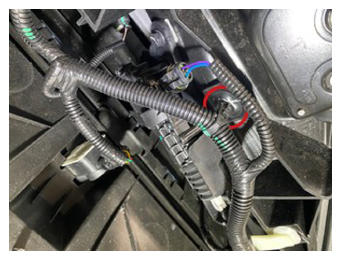

    G15079701Courtesy of TESLA, INC.
  7. Release the locking tab, and then disconnect the hood latch actuator and cable assembly electrical connector.

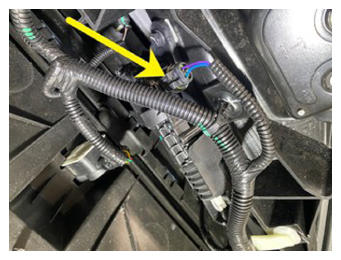

    G15079702Courtesy of TESLA, INC.
  8. Compress the tabs (x2) to release the hood latch actuator and cable from the hood latch assembly.

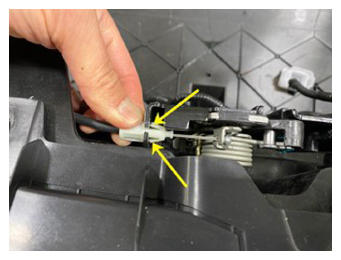

    G15079703Courtesy of TESLA, INC.
    G15079704Courtesy of TESLA, INC.
    G15079705Courtesy of TESLA, INC.

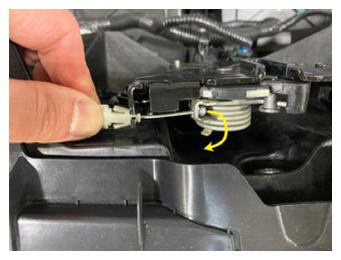

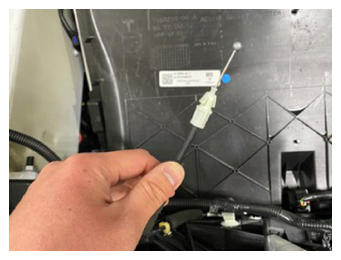

    G15079706Courtesy of TESLA, INC.
  9. Release the clip that attaches the hood latch actuator and cable assembly to the vehicle.

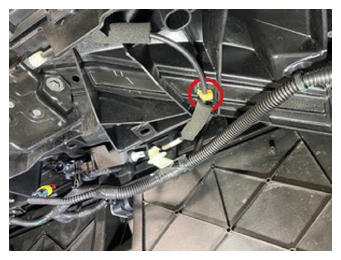

    G15079707Courtesy of TESLA, INC.
  10. Remove the bolts (x2) that attach the hood latch actuator and cable assembly to the vehicle, and then remove the assembly from the vehicle.

    5 N.m (3.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench

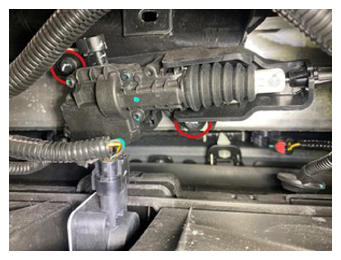

    G15079708Courtesy of TESLA, INC.
    G15079709Courtesy of TESLA, INC.
