Actuator - Latch - Hood (Single Actuator System) - Remove And Replace: Install

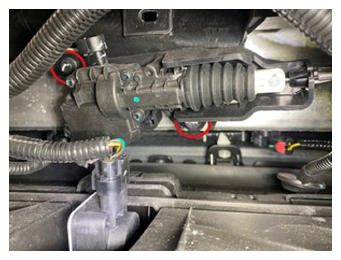

Position the hood latch actuator and cable assembly into the vehicle, and then install the bolts (x2) that attach the assembly to the vehicle.
5 N.m (3.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

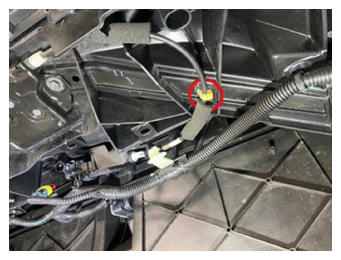

Install the clip that attaches the hood latch actuator and cable assembly to the vehicle.

Courtesy of TESLA, INC.

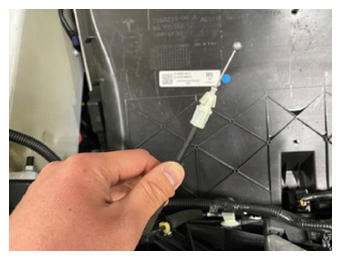

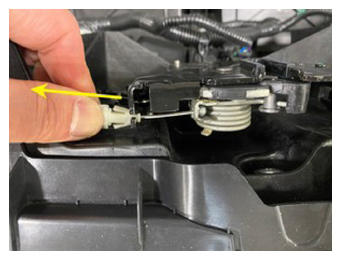

Install the hood latch actuator and cable into the double pull single actuator hood latch assembly.

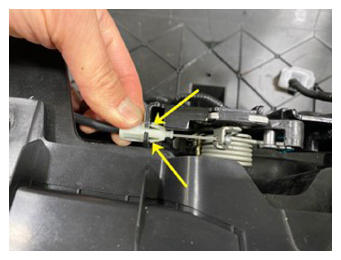

NOTE: Make sure the tabs are fully engaged onto the hood latch assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

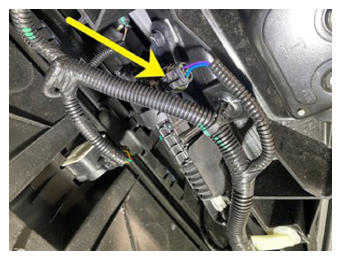

Connect the hood latch actuator and cable assembly electrical connector, and then engage the locking tab.

Courtesy of TESLA, INC.

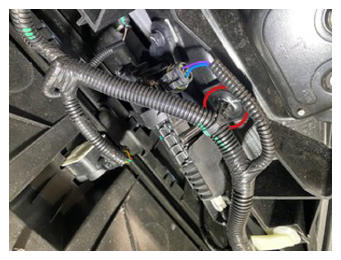

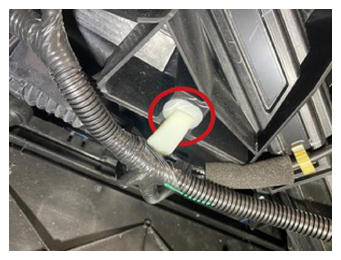

Install the clips that attach the FEM harness to the front end carrier assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install underhood storage unit. See Underhood Storage Unit (Remove and Replace) .
Install the front underhood apron. See Underhood Apron - Front (Remove and Replace) .
Install the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
