Handle - Emergency Release - Liftgate - Remove And Replace: Install

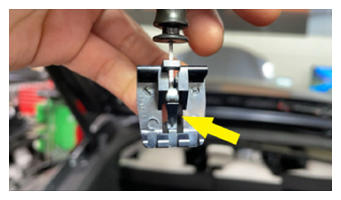

  1. Install the liftgate emergency release handle onto the release cable assembly.
    G15079833Courtesy of TESLA, INC.

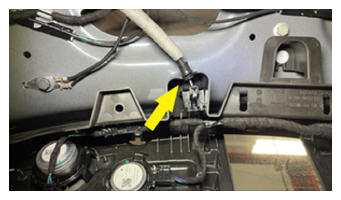

  2. Install the emergency release handle onto the trunk trim.
    G15079834Courtesy of TESLA, INC.
  3. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
