Window Regulator - Rear - LH - Remove And Replace: Remove

Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .
Remove the butyl patches that cover the LH rear door regulator isolator clamps.

Courtesy of TESLA, INC.

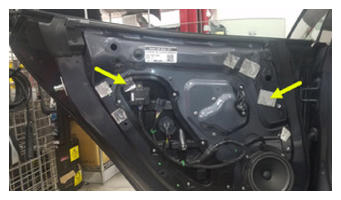

Remove plugs (x2) that cover the openings in LH rear door to access the LH rear door regulator mounting guides.

Courtesy of TESLA, INC.

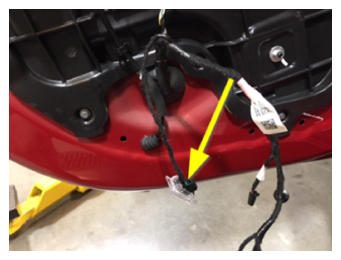

Temporarily connect the puddle lamp to the LH rear door.
NOTE: Route the harness/lamp so it will not be damage when the closing the door.

Courtesy of TESLA, INC.
Connect the window switch special tool to the LH rear door harness.

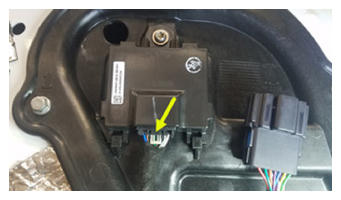

Pull the white tab to release the connector lock, and then disconnect the LH rear door handle controller electrical connector.

Courtesy of TESLA, INC.

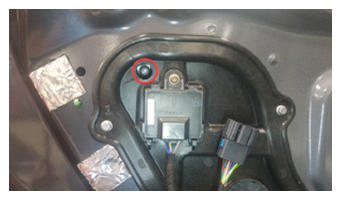

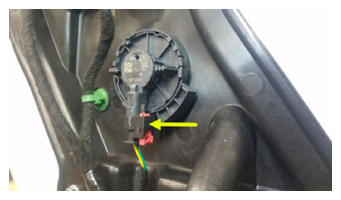

Disconnect the LH rear door pressure sensor electrical connector.
NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

Courtesy of TESLA, INC.

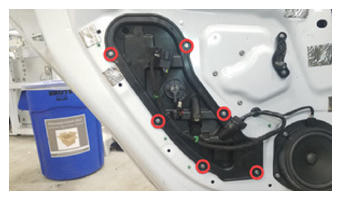

Remove the bolts (x6) that attach the LH rear door closeout panel to the door assembly.
Torque 4 N.m

Tip: Use of the following tool(s) is recommended:
- 8 mm socket
- Flex head ratchet/flex head torque wrench
- 2 in extension
Courtesy of TESLA, INC.

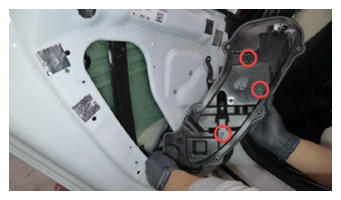

Release the clips (x3) that attach the wiring harness to the LH rear door closeout panel, and then remove the closeout panel from the vehicle.
NOTE: Release the clips from the back of panel to prevent damage.

Courtesy of TESLA, INC.
Remove the LH rear door speaker. See Speaker - Rear Door - LH (Remove and Replace) .
Use the window switch special tool to raise the LH rear door glass partially for access to the foremost regulator isolator clamp.

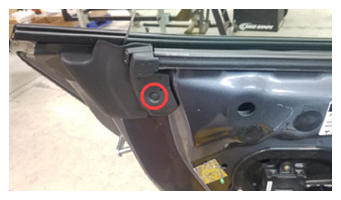

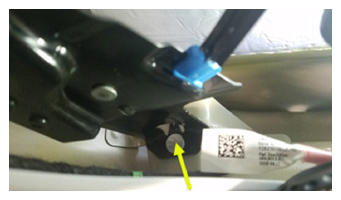

Remove the bolt that attaches the rear LH door glass to the foremost regulator isolator clamp.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
- 2 in extension
Courtesy of TESLA, INC.
Raise the LH rear window partially for access to the rearmost regulator isolator clamp.
Remove the bolt that attaches the rear LH door glass to the rearmost regulator isolator clamp.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
- 2 in extension
Courtesy of TESLA, INC.

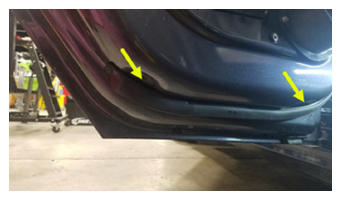

Release the LH rear door margin seal from the LH rear door assembly, and then remove the seal from the assembly.

Courtesy of TESLA, INC.
Release the LH C-pillar margin seal from the LH rear door assembly, and then remove the seal from the assembly.

Courtesy of TESLA, INC.
Remove the LH rear door inner belt seal. See SEAL - INNER BELT - REAR DOOR - LH (REMOVE AND REPLACE) .

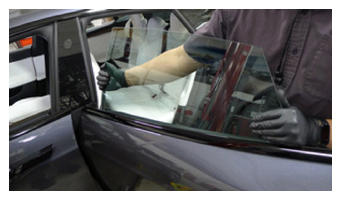

Remove rear LH door glass from the door assembly.

Courtesy of TESLA, INC.

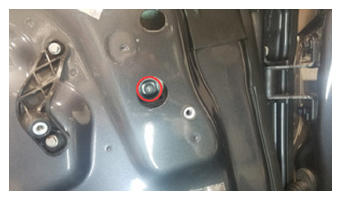

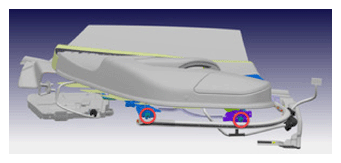

Remove the lower LH rear regulator mounting nuts (x2).
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

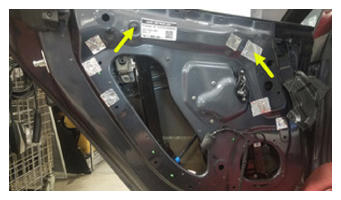

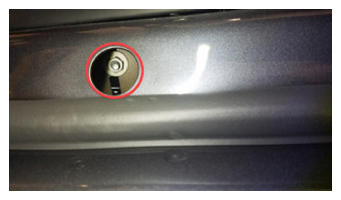

Remove the plug and butyl patch that cover the LH rear door regulator upper mounting nuts.

Courtesy of TESLA, INC.

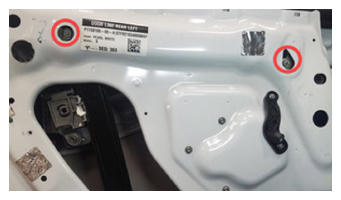

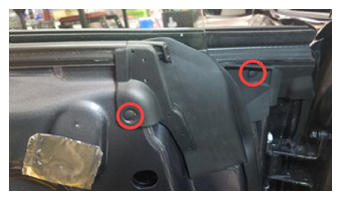

Remove the LH rear door regulator upper mounting nuts (x2).
Torque 10 N.m

Tip: Use of the following tool(s) is recommended:
- Use of the following tool(s) is recommended:
Courtesy of TESLA, INC.

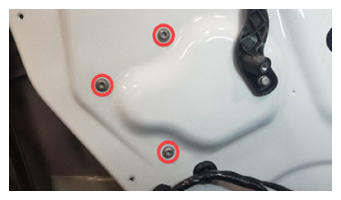

Remove the screws (x3) that attach the LH rear window regulator motor to the door.
Torque 3 N.m

Tip: Use of the following tool(s) is recommended:
- Torx T30 socket
Courtesy of TESLA, INC.

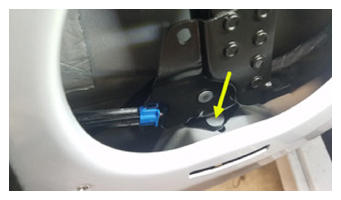

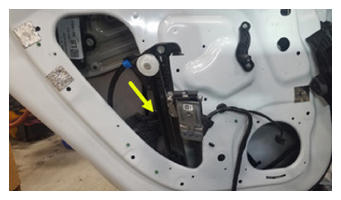

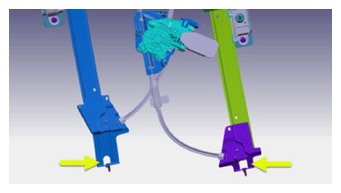

Release the LH rear window regulator from the lower mounts.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Collapse and partially maneuver the LH rear window regulator through the door opening enough to access the motor harness electrical connector.

Courtesy of TESLA, INC.

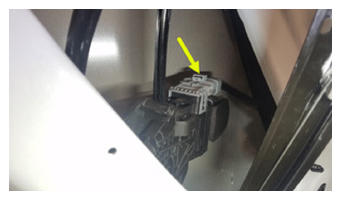

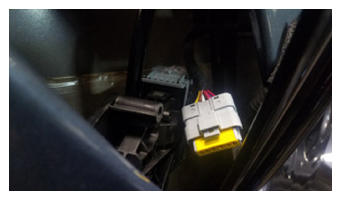

Disconnect the LH rear window regulator motor electrical connector.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

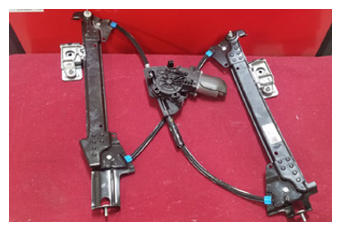

Remove the LH rear window regulator from the door.
