Window Regulator - Rear - LH - Remove And Replace: Install

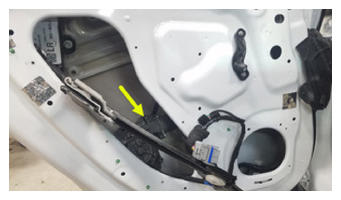

Partially install the LH rear window regulator into the door opening with enough clearance to access the motor harness electrical connector.

Courtesy of TESLA, INC.

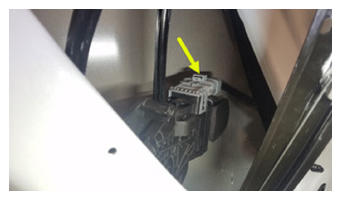

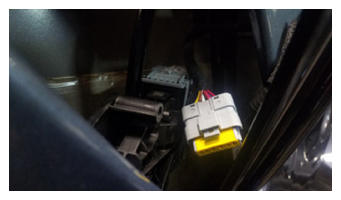

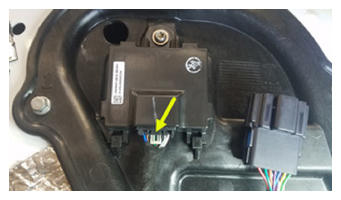

Connect the LH rear window regulator motor electrical connector.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

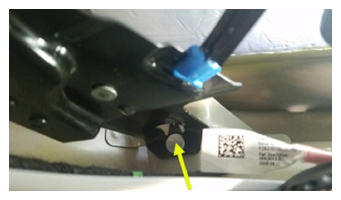

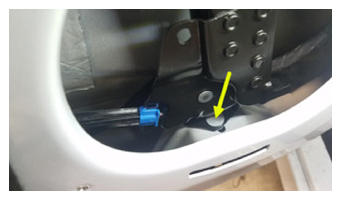

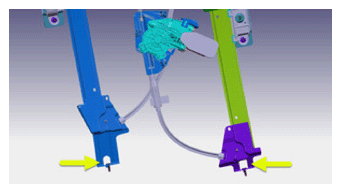

Secure the LH rear window regulator into the lower mounts.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

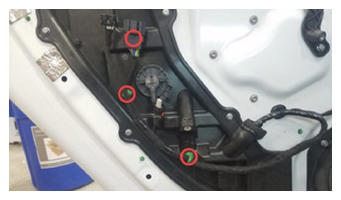

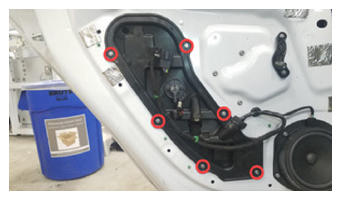

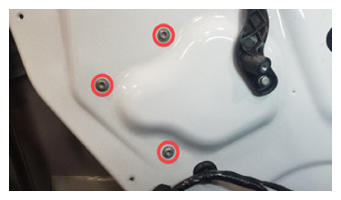

Install the screws (x3) that attach the LH rear window regulator motor to the door.
Torque 3 N.m

Tip: Use of the following tool(s) is recommended:
- Torx T30 socket
Courtesy of TESLA, INC.

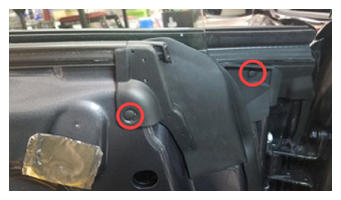

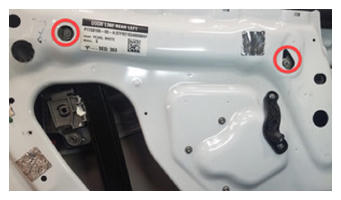

Install the LH rear door regulator upper mounting nuts (x2).
Torque 10 N.m

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

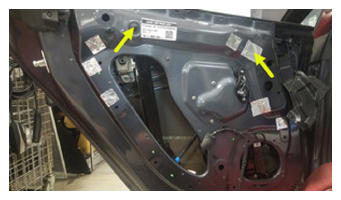

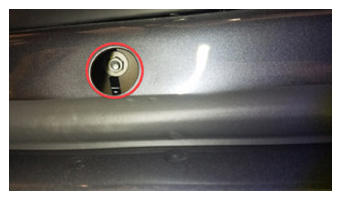

Install the plug and butyl patch that cover the LH rear door regulator upper mounting nuts.

Courtesy of TESLA, INC.

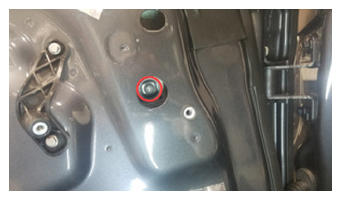

Install and hand-tighten the lower nuts (x2) that attach the LH rear window regulator to the door assembly.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

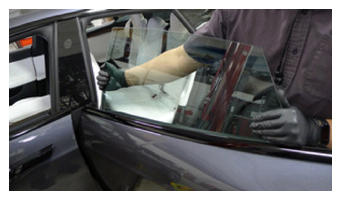

Position the rear LH door glass into the LH rear door.

Courtesy of TESLA, INC.
Install the LH rear door inner belt seal. See SEAL - INNER BELT - REAR DOOR - LH (REMOVE AND REPLACE) .
Install the LH C-pillar margin seal onto the LH rear door assembly.

Courtesy of TESLA, INC.
Install the LH rear door margin seal onto the LH rear door assembly.

Courtesy of TESLA, INC.

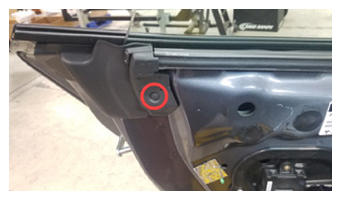

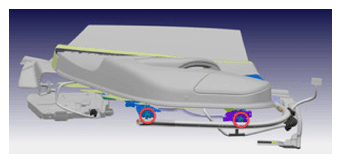

Install and hand tighten the bolt that attaches the LH rear door glass to the rearmost regulator isolator clamp.

Courtesy of TESLA, INC.
Lower the LH rear door glass partially for access to foremost regulator isolator clamp.

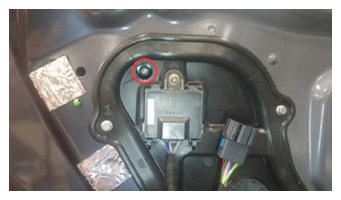

Install and hand tighten the bolt that attaches the LH rear door glass to the foremost regulator isolator clamp.

Courtesy of TESLA, INC.
Install the LH rear door speaker. See Speaker - Rear Door - LH (Remove and Replace) .
Position the LH rear door closeout panel onto the door, and then install the bolts (x6) that attach the closeout panel to the door.
Torque 4 N.m

Tip: Use of the following tool(s) is recommended:
- 8 mm socket
- Flex head ratchet/flex head torque wrench
- 2 in extension
Courtesy of TESLA, INC.
Install the clips (x3) that attach the wiring harness onto the LH rear door closeout panel.

Courtesy of TESLA, INC.

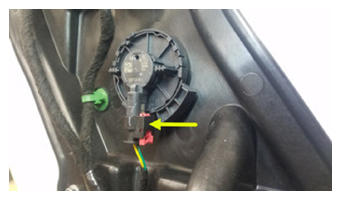

Connect the LH rear door pressure sensor electrical connector, and then engage the connector lock.

Courtesy of TESLA, INC.
Connect the LH rear door handle controller electrical connector, and then engage the connector lock.

Courtesy of TESLA, INC.
Raise the LH rear window fully.
Close the LH rear door.
Adjust the LH rear window. See DOOR GLASS - REAR - LH (ADJUST) .
