Door Glass - Rear - LH - Remove And Replace: Remove
- Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace)

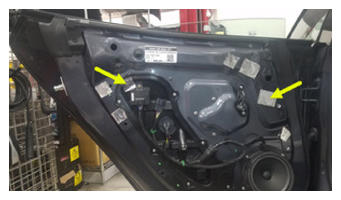

- Remove the butyl patches that cover the LH rear door regulator isolator clamps.

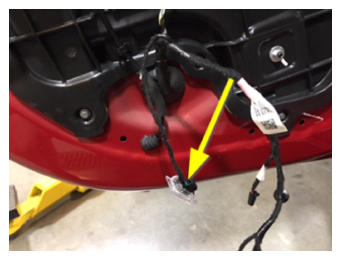

- Temporarily connect the puddle lamp to the LH rear door.CAUTION: Route the wiring harness so it will not be damage when closing the door.
- Connect the window switch special tool to the LH rear door harness.
- Raise the LH rear window partially for access to the foremost regulator isolator clamp.

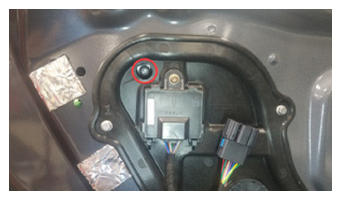

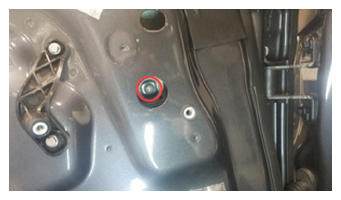

- Remove the bolt that attaches the rear LH door glass to the foremost regulator isolator clamp.
8 N.m (5.9 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
- 2 in extension
- Raise the LH rear window partially for access to the rearmost regulator isolator clamp.

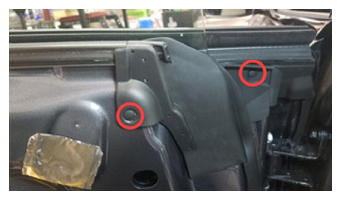

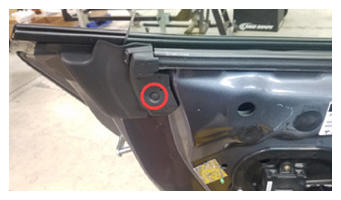

- Remove the bolt that attaches the rear LH door glass to the rearmost regulator isolator clamp.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench
- 2 in extension
- Release the LH rear door margin seal from the LH rear door assembly, and then remove the seal from the assembly.
- Release the LH C-pillar margin seal from the LH rear door assembly, and then remove the seal from the assembly.
- Remove the LH rear door inner belt seal. See SEAL - INNER BELT - REAR DOOR - LH (REMOVE AND REPLACE) .

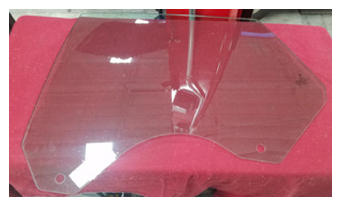

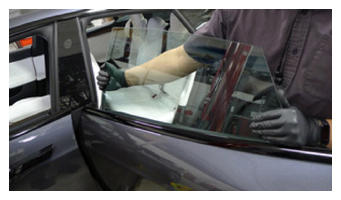

- Remove rear LH door glass from the door assembly.
