Door Glass - Rear - LH - Adjust: Procedure

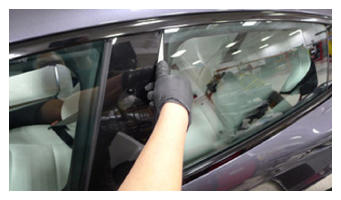

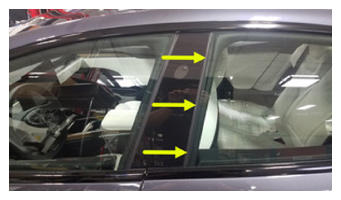

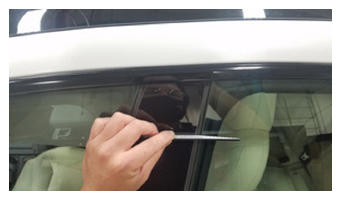

- Check the gap between the LH rear window and LH B-pillar applique.NOTE: Measure the spots (x3) labeled in example image. Refer to CVIS for current specifications.
- Remove the LH rear door panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .

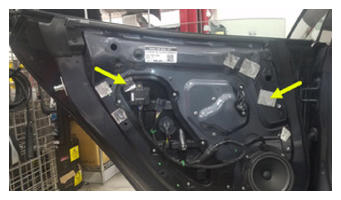

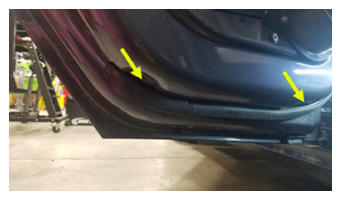

- Remove the butyl patches that cover the openings in the LH rear door to access the LH rear door regulator isolator clamps.

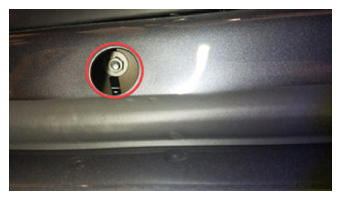

- Remove plugs (x2) that cover the openings in LH rear door to access the LH rear door regulator mounting guides.

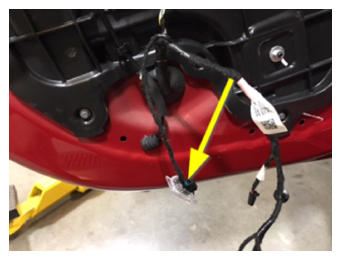

- Temporarily connect the puddle lamp to the LH rear door.CAUTION: Route the harness/lamp so it will not be damage when the closing the door.
- Connect the window switch special tool to the LH rear door harness.

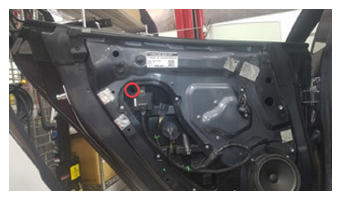

- Raise the LH rear door glass partially for access to the foremost regulator isolator clamp.

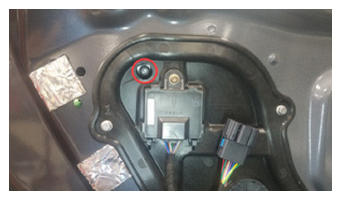

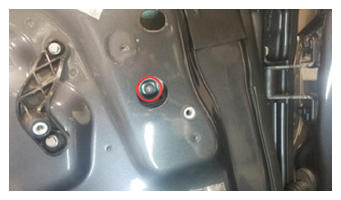

- Loosen the bolt that attaches the LH rear door glass to the foremost regulator isolator clamp enough to maintain glass position but still allow for adjustment.
8 N.m (5.9 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Raise the LH rear door glass partially for access to rearmost regulator isolator clamp.
- Loosen the bolt that attaches the LH rear door glass to the rearmost regulator isolator clamp enough to maintain glass position but still allow for adjustment.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Inspect the regulator isolator clamps for glass splinters or other debris, and clean them if necessary.CAUTION: Debris and splinters may damage or shatter the new door glass.

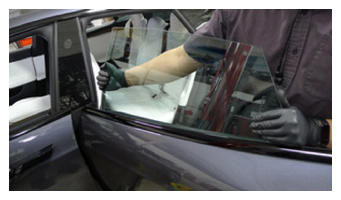

- Adjust the LH rear door glass to achieve gap target, and then hand tighten rearmost bolt.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Lower the LH rear door glass partially for access to foremost regulator isolator clamp.
- Adjust the LH rear door glass to achieve gap target, and then hand tighten the bolt on the foremost regulator isolator clamp.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Raise the LH rear window fully.
- Close the LH rear door.
- Check the gap between the LH rear window and LH B-pillar applique.NOTE: Measure the spots (x3) labeled in example image. Refer to CVIS for current specifications.
- Open the LH rear door.
- Lower the LH rear door glass partially for access to rearmost regulator isolator clamp.
- Torque bolt that attaches the LH rear door glass to the regulator rearmost isolator clamp.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Lower the LH rear door glass partially for access to the foremost regulator isolator clamp.
- Torque the bolt that attaches the LH rear door glass to the foremost regulator isolator clamp.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Raise the window fully.
- Close the LH rear door.
- Check the flushness between the LH rear door glass and LH B-pillar applique.NOTE: Measure the spots (x3) labeled in example image. Refer to CVIS for current specifications.
- Open the LH rear door.

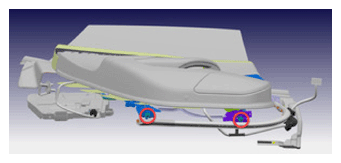

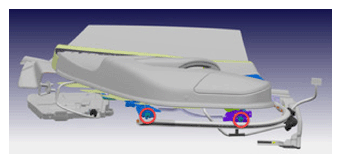

- Loosen the lower LH rear regulator mounting nuts (x2) enough to maintain position but still allow adjustment.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- With assistance, adjust the LH rear door glass to achieve flushness target, and then hand tighten the lower LH rear regulator mounting nuts (x2).
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Close the LH rear door.
- Check the flushness between the LH rear door glass and LH B-pillar applique.NOTE: Measure the spots (x3) labeled in example image. Refer to CVIS for current specifications.
- Open the LH rear door.
- Torque the lower LH rear regulator mounting nuts (x2).
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Lower the LH rear window fully.
- Disconnect the window switch special tool.
- Disconnect the puddle lamp from the LH rear door.
- Install plugs (x2) that cover the openings in LH rear door.
- Install the butyl patches that cover the openings in the LH rear door.
- Install the LH rear door panel. See Panel - Door Trim - Rear - LH (Remove and Replace) .
- Connect a laptop with Toolbox 3 to the vehicle.
- In Toolbox, click the Actions/Autodiag tab, and then search for "window".
- Click TEST-SELF_VCLEFT_REAR-L_CALIBRATE-WINDOW, and then click Run
and allow the routine to complete.NOTE: Click the X at the top right of the window to close once complete.
- Press LH rear window switch down to second position to activate the auto-lower function, then raise window switch up to second position to activate auto-raise function.NOTE: If window does not lower completely, repeat previous calibration steps.
- Disconnect the laptop from the vehicle.
