Door Glass - Front - LH - Remove And Replace: Install

Inspect the regulator isolator clamps for glass splinters or other debris, and clean them if necessary.
CAUTION: Debris and splinters may damage or shatter the new door glass.

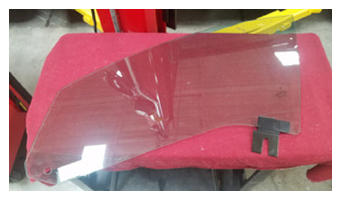

Position the LH front door glass into the door assembly.

Courtesy of TESLA, INC.
Install the LH front door inner belt seal. See SEAL - INNER BELT - FRONT DOOR - LH (REMOVE AND REPLACE) .

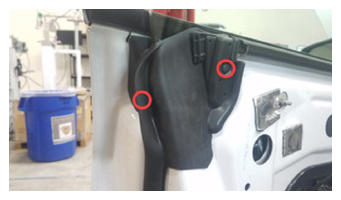

Secure the clips (x2) that attach the LH front door margin seal to the LH front door.

Courtesy of TESLA, INC.

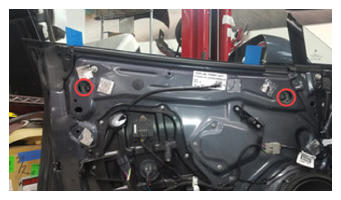

Install and hand-tighten the bolts (x2) that attach the LH front door glass to the LH front regulator isolator clamps.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.
Adjust the LH front door glass. See DOOR GLASS - FRONT - LH (ADJUST)
