Sensor - Parking Distance - Outer - Front (HW3) - Remove And Replace: Remove
NOTE:

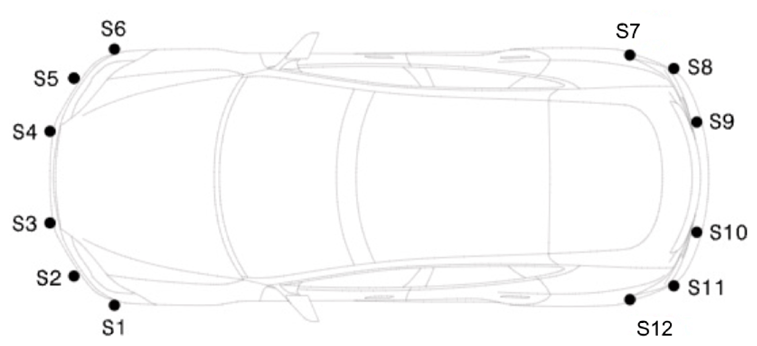

This procedure is applicable to sensors S1, S2, S5, and S6.
- Open the LH front door and lower the LH front window.
- Press the brake pedal to turn on the drive rails.
Tip: Leaving the driver door open keeps the drive rails on.
- On the vehicle touchscreen, touch Controls > Suspension > Very High .
- On the vehicle touchscreen, touch Controls > Service > Jack Mode to activate Jack Mode.
- Turn the steering wheel all the way to the right.
- Disconnect LV Power. See LV Power (Disconnect And Connect) .

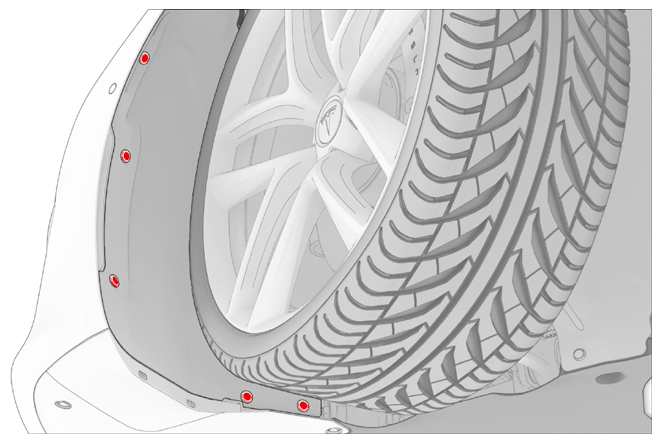

- Remove the push clips that attach the LH front wheel arch liner to the front fascia, and then move the wheel arch liner to the side.
Tip: Shift the bottom of the wheel arch liner towards the floor and position the top of the liner against the tire.

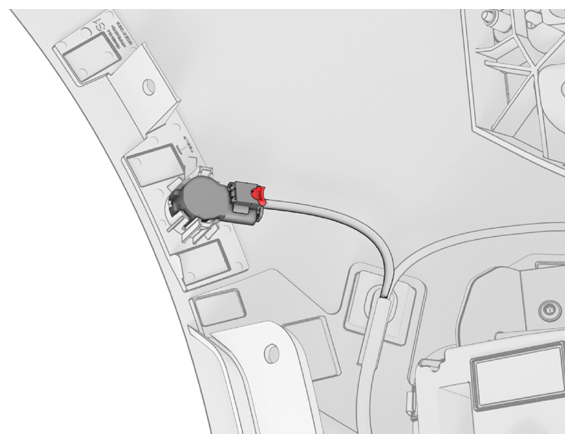

- Disconnect the electrical harness from the parking distance sensor.CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

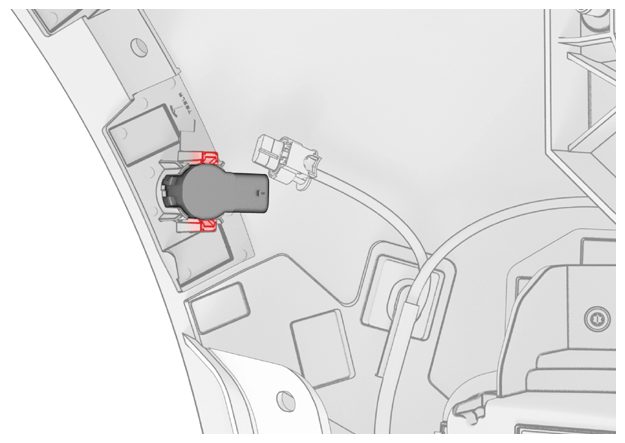

- Release the tabs that attach the parking distance sensor to the front fascia, and then remove the sensor from the fascia.
