Side Repeater - Front - LH (HW4) - Remove and Replace: Install
- Install the LH front side repeater camera. See Side Repeater Camera - Front - LH (HW4) (Remove and Replace) .

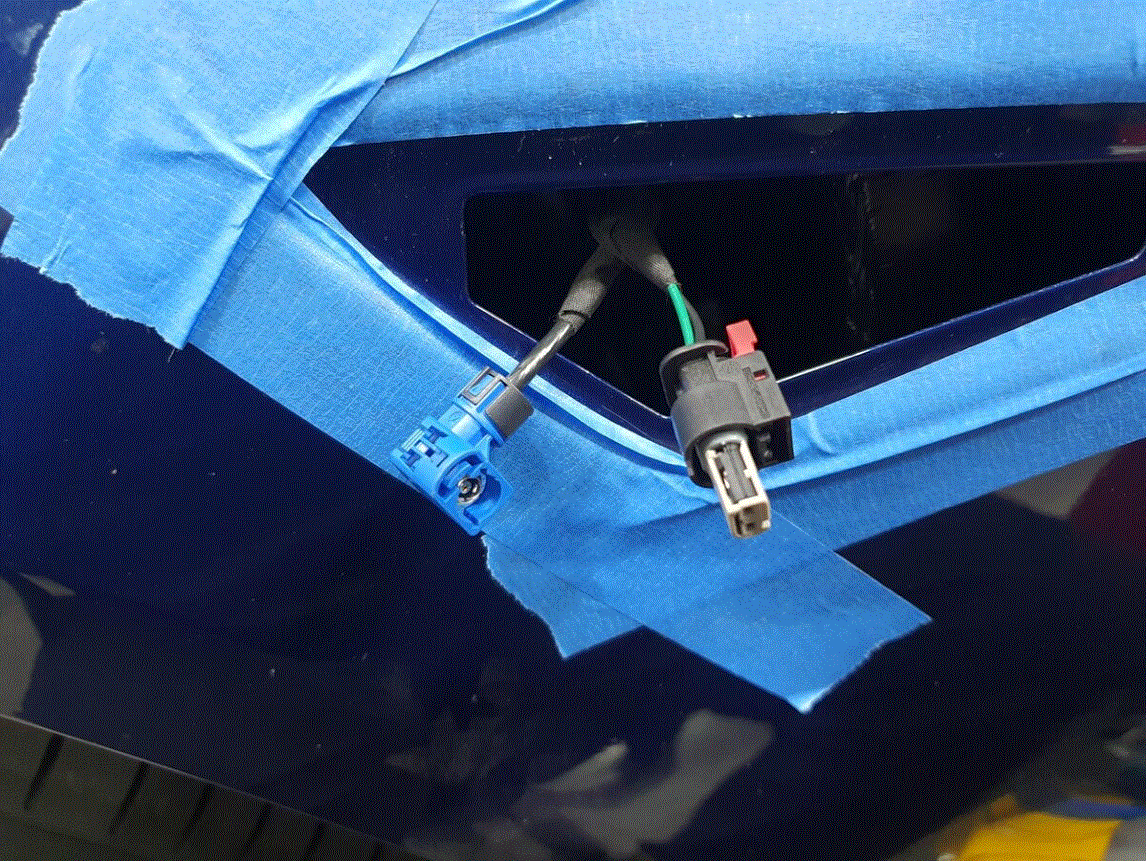

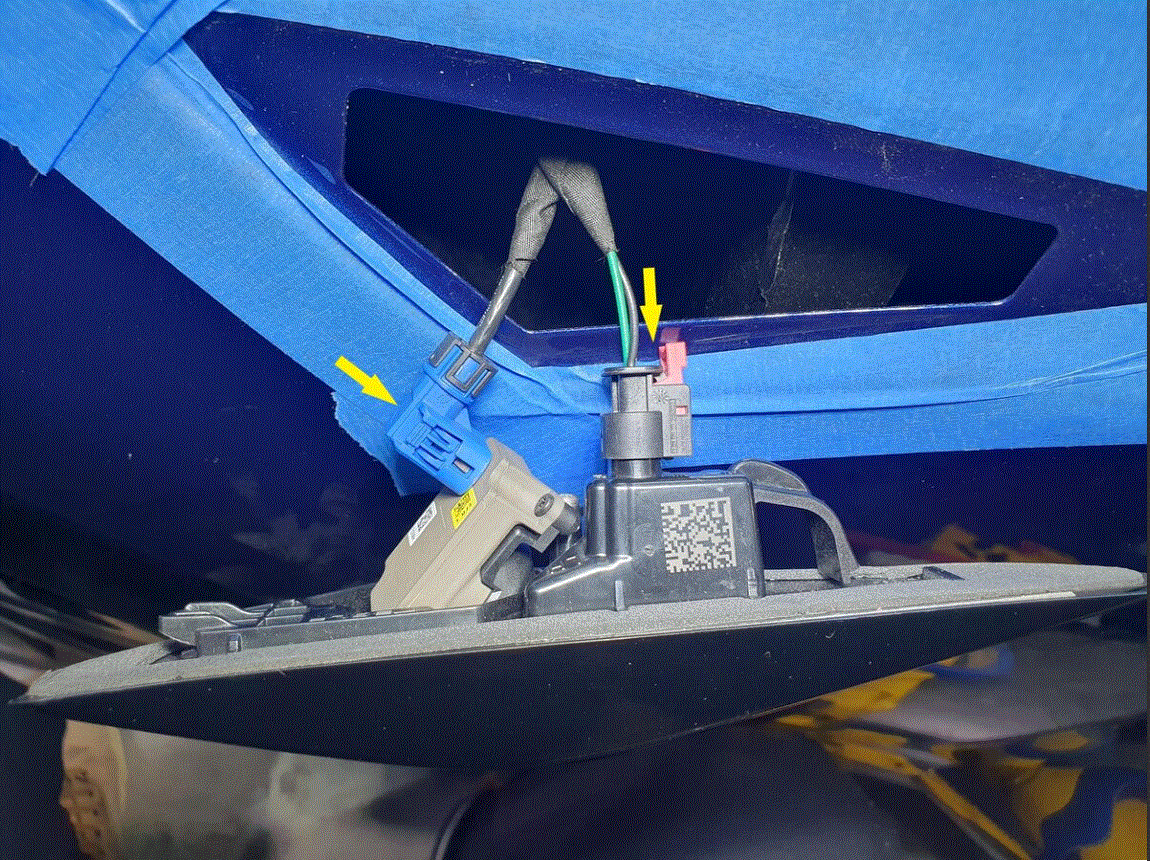

- Connect the LH front side repeater connectors (x2).NOTE: Secure the side repeater connectors, and then engage the red locking tab on the side repeater connector.
- Open the LH front door.
- Reset the Driver Assistance System (DAS).
- Unlock the vehicle gateway. See Gateway (Unlock) .
- On the touchscreen Service Mode menu, touch Driver Assist > Cameras > Reset DAS .

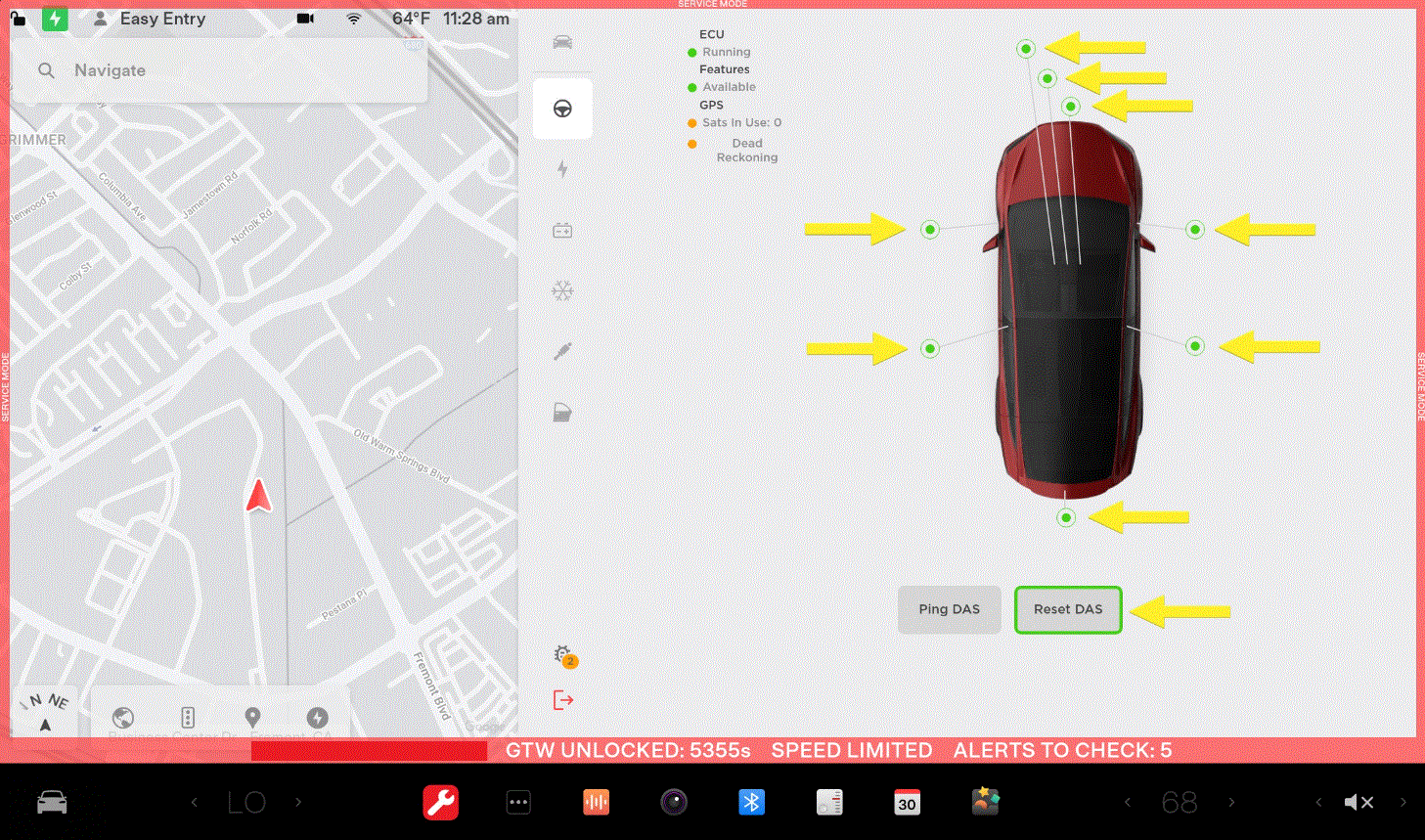

- On the touchscreen Cameras diagram, confirm that the Reset DAS
button is highlighted green and that all DAS components display a green status light.NOTE: Investigate and rectify any DAS components that display a red status light.
- Close the LH front door.
- Install the push clip that attaches the LH front side repeater to the LH front fender assembly.NOTE: Ensure all tabs are intact and installed in place correctly.

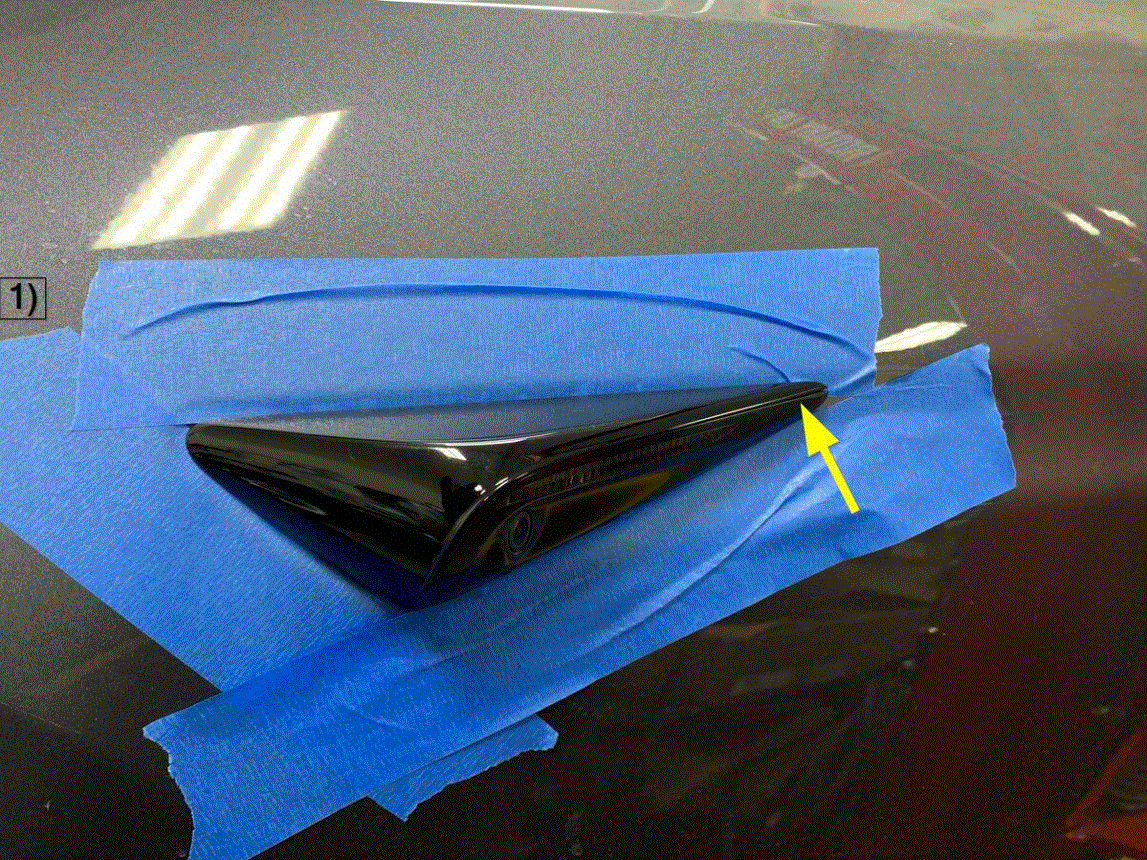

- Insert the side repeater rear hook clip into the repeater slot in the fender, apply light constant pressure at the rear of the repeater, and then keep pressure until the repeater is installed.

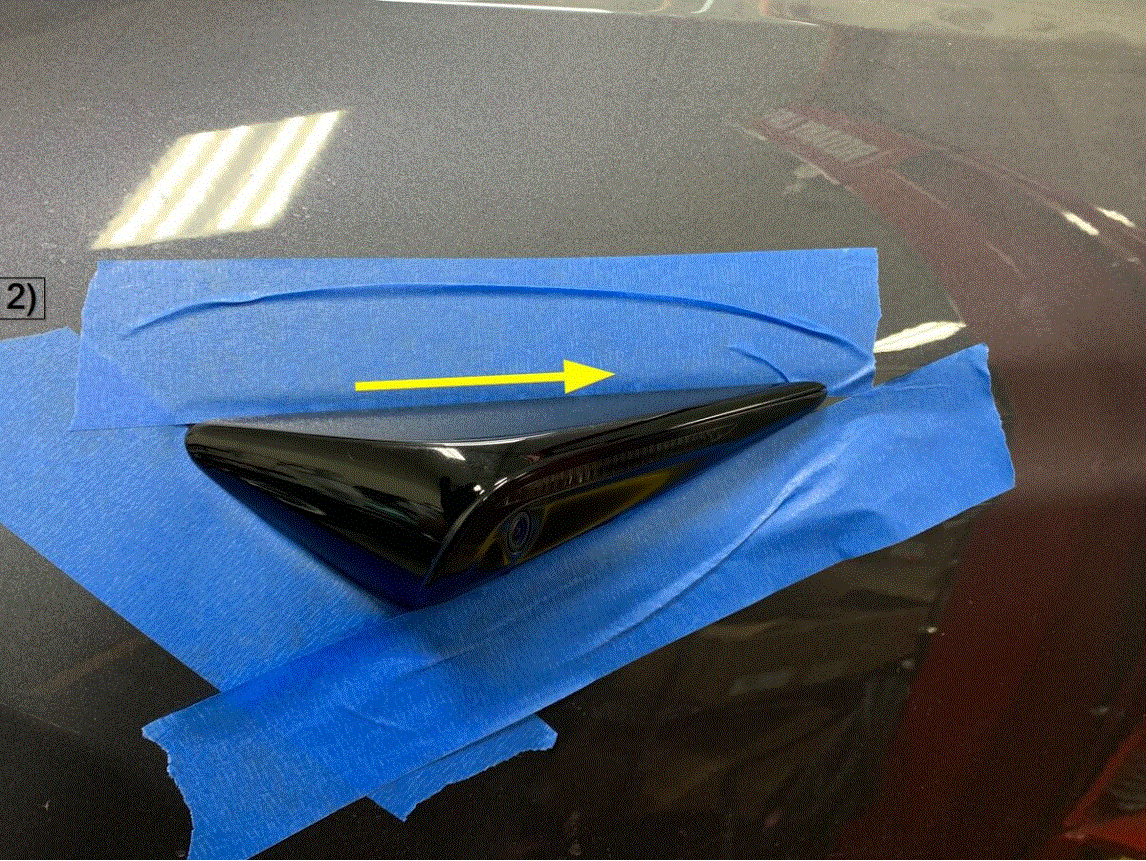

- Slide the side repeater rearwards until the rear hook clip engages the fender and the front clip clears the edge of the repeater slot in the fender.
- Press on the front of the side repeater until the front clip is inside of the repeater slot and keep pressure on the front and rear of the repeater until installation is complete.

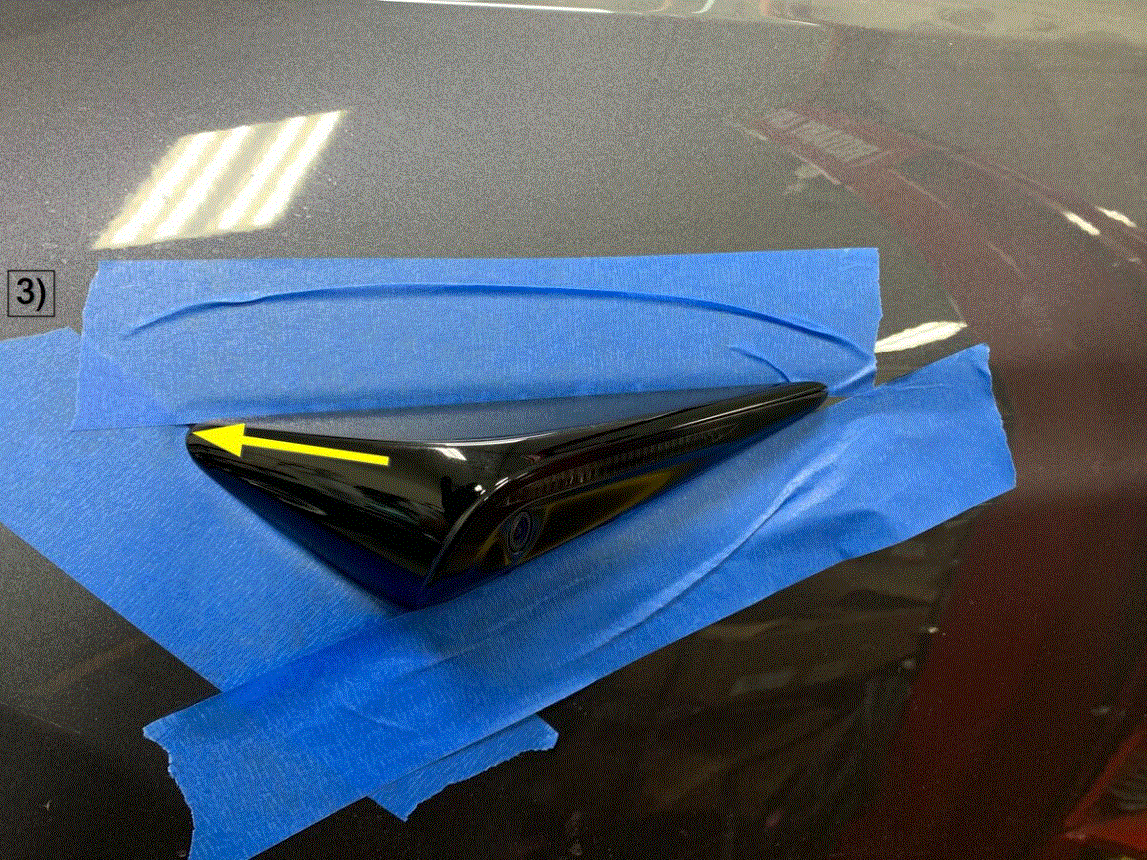

- Slide the side repeater towards the front of the vehicle until the front clip engages the fender, and then release pressure on the repeater.

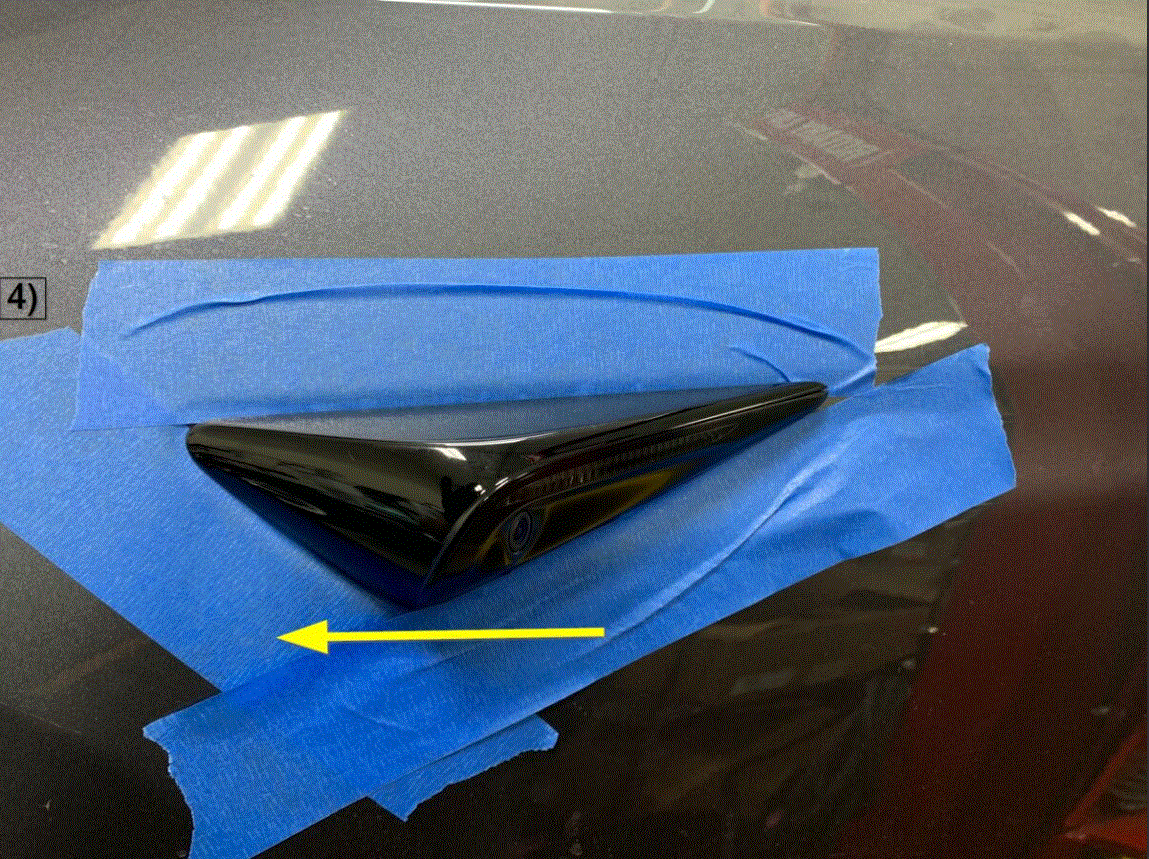

- Insert the side repeater rear hook clip into the repeater slot in the fender, apply light constant pressure at the rear of the repeater, and then keep pressure until the repeater is installed.

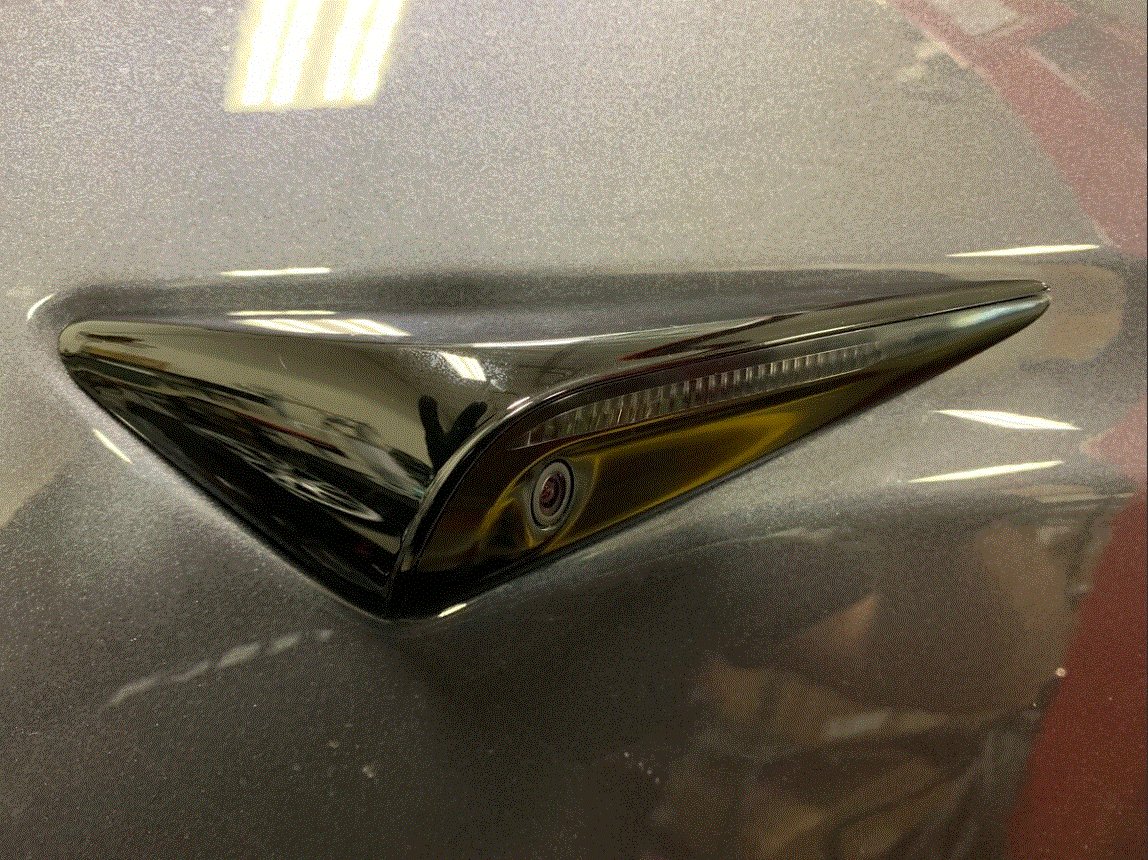

- Remove the masking tape from the LH front fender assembly at the edges of the LH front side repeater.
