Trim - Seat Back -- 2nd Row -- RH - Remove And Replace: Remove

  1. Open the RH front door and lower the RH front window.
  2. Open the RH rear door.
  3. Move the front passenger seat fully forward.
  4. Remove the RH 2nd row seat outer bolster. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace) .
  5. Fold the RH 2nd row seat back to the down position.
    NOTE: If the seat cushion is not present, protect the seat as required.
  6. Disconnect the RH 2nd row seat back harness electrical connector.
    G00631676Courtesy of TESLA, INC.
  7. Release the clip that attaches the RH 2nd row seat back harness to the pivot bracket.
    G00631635Courtesy of TESLA, INC.
  8. Remove the RH 2nd row seat back panel. See Back Panel - 2nd Row Seat - RH (Remove And Replace) .
  9. Remove the RH 2nd row headrest. See Headrest - 2nd Row - LH (Remove And Replace) .
  10. Remove the LH and RH 2nd row backrest guide locks. See Guide Lock - Headrest - 2nd Row (Remove And Replace) .
  11. Remove the bolts (x2) that attach the RH 2nd row backrest cushion to the back frame.

    8 N.m (5.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    G00631636Courtesy of TESLA, INC.
  12. Fold the RH 2nd row seat back to the vertical position, but do not latch the seat back
    G00631637Courtesy of TESLA, INC.
  13. Release the clips (x8), disconnect the backrest harness electrical connector, and then remove the RH 2nd row backrest cushion from the vehicle.
    NOTE: Release the upper clips first to disconnect backrest the connector.
    G00631638Courtesy of TESLA, INC.
    G00631639Courtesy of TESLA, INC.

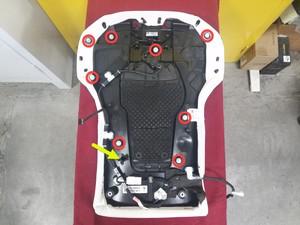

    G00631640Courtesy of TESLA, INC.
  14. Disconnect the RH 2nd row seat back substrate harness electrical connectors (x2).

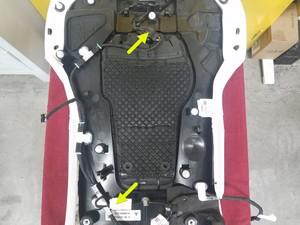

    G00631641Courtesy of TESLA, INC.
  15. Release the hooks that attach the bottom portion of the RH 2nd row seat back trim to the RH 2nd row seat back insert.
    NOTE: Negotiate the trim under the harness.

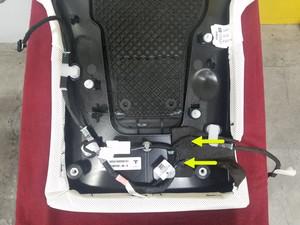

    G00631642Courtesy of TESLA, INC.
  16. Release the clips (x2) that attach the RH 2nd row backrest cushion heat pad harness to the seat back insert.
    G00631643Courtesy of TESLA, INC.
  17. Release the clips (x5) that attach the RH 2nd row seat back trim to the RH 2nd row seat back insert.
    NOTE: Negotiate the clips around the substrate harness.

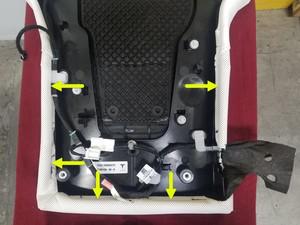

    G00631644Courtesy of TESLA, INC.
  18. Release the hooks (x6) and clips (x2) that attach the top portion of RH 2nd row seat back trim to the RH 2nd row seat back insert.

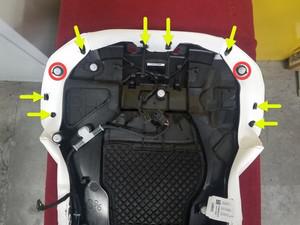

    G00631645Courtesy of TESLA, INC.
  19. Pull the top portion of RH 2nd row seat back trim down and off the RH 2nd row seat back insert.
    G00631646Courtesy of TESLA, INC.

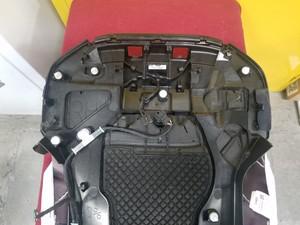

    G00631647Courtesy of TESLA, INC.
  20. Remove the RH 2nd row seat back insert from the cushion assembly.
    NOTE: Negotiate the heat pad harness under the substrate harness.

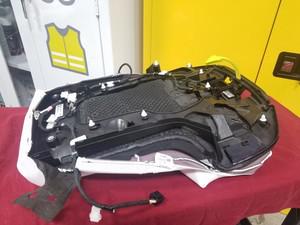

    G00631648Courtesy of TESLA, INC.
    G00631649Courtesy of TESLA, INC.
    G00631650Courtesy of TESLA, INC.
    G00631651Courtesy of TESLA, INC.
  21. Release the velcro that attaches the RH 2nd row seat back trim to the 2nd row seat back foam until the hog rings are visible.
    G00631652Courtesy of TESLA, INC.
  22. Use diagonal cutters to cut the hog rings (x3) that attach the RH 2nd row seat back trim to the 2nd row seat back foam.
    NOTE: Push down on the foam to allow access to rings.
    NOTE: Remove any excess hog ring pieces
    G00631653Courtesy of TESLA, INC.
  23. Remove the RH 2nd row seat back trim from the seat back foam.
    G00631654Courtesy of TESLA, INC.
    G00631655Courtesy of TESLA, INC.
    G00631656Courtesy of TESLA, INC.
