Microphone - Seat - 2nd Row - RH - Remove And Replace: Install

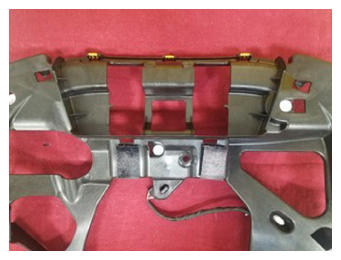

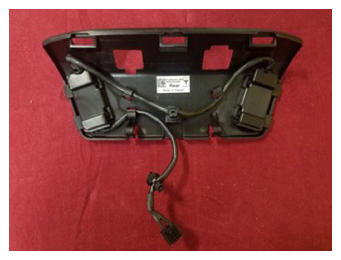

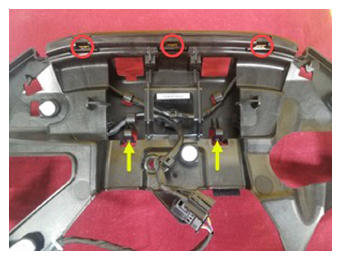

  1. Fasten the clips (x3) and tabs (x2) that attach the RH 2nd row microphone assembly to the RH 2nd row seat back substrate.
    G15082461Courtesy of TESLA, INC.
    G15082462Courtesy of TESLA, INC.
    G15082463Courtesy of TESLA, INC.

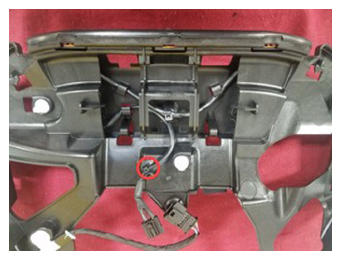

  2. Install the clip that attaches the RH 2nd row microphone harness to the RH 2nd row seat back substrate.
    G15082464Courtesy of TESLA, INC.

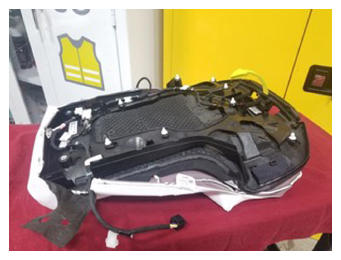

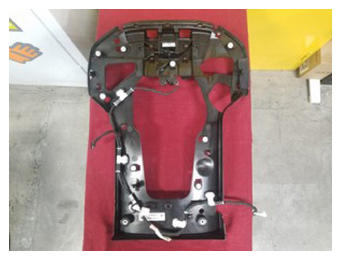

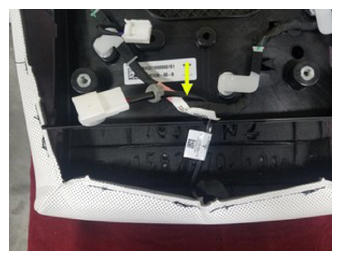

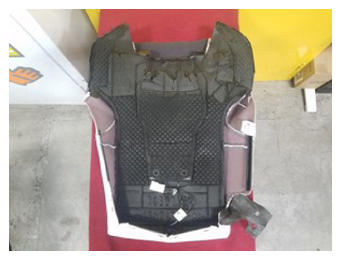

  3. Position the RH 2nd row seat back substrate assembly into the cushion assembly.
    NOTE: Maneuver heat pad harness under substrate harness.
    G15082465Courtesy of TESLA, INC.
    G15082466Courtesy of TESLA, INC.
    G15082467Courtesy of TESLA, INC.
    G15082468Courtesy of TESLA, INC.

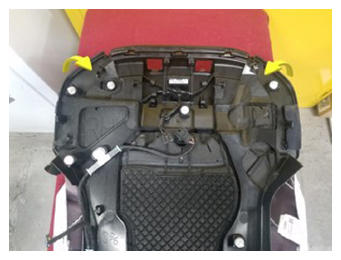

  4. Pull top the portion of RH 2nd row seat back trim up and onto the RH 2nd row seat back substrate.
    G15082469Courtesy of TESLA, INC.

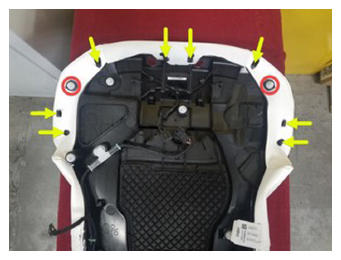

  5. Secure the hooks (x6) and clips (x2) that attach the top portion of RH 2nd row seat back trim to the RH 2nd row seat back substrate.
    G15082470Courtesy of TESLA, INC.

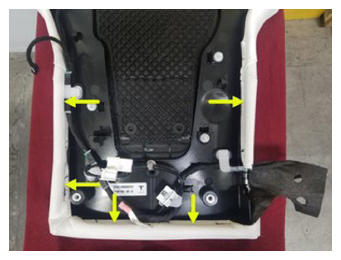

  6. Fasten the clips (x5) that attach the RH 2nd row seat back trim to the RH 2nd row seat back substrate.
    NOTE: Maneuver the clips around the substrate harness.
    G15082471Courtesy of TESLA, INC.

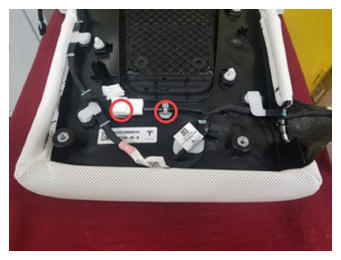

  7. Install the clips (x2) that attach the RH 2nd row backrest cushion heat pad harness to the RH 2nd row seat back substrate.
    G15082472Courtesy of TESLA, INC.

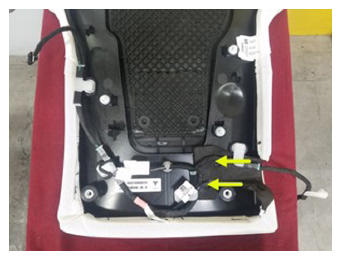

  8. Secure the hooks (x2) that attach the bottom portion of RH 2nd row seat backrest trim to the RH 2nd row seat back substrate.
    NOTE: Maneuver the trim under the harness.
    G15082473Courtesy of TESLA, INC.

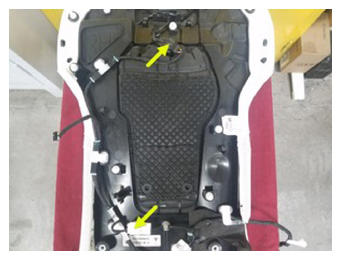

  9. Connect the RH 2nd row seat back substrate harness electrical connectors (x2).
    G15082474Courtesy of TESLA, INC.

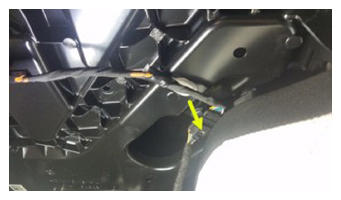

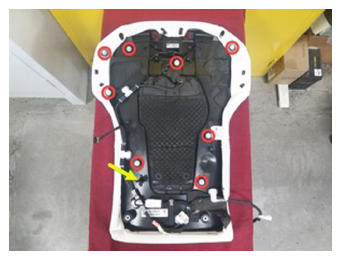

  10. Position the RH 2nd row backrest cushion assembly onto the backrest frame, secure the lower clips, connect the electrical connector, and then fasten the remaining clips that attach backrest assembly onto the backrest frame.
    NOTE: Ensure all the clips are seated.
    G15082475Courtesy of TESLA, INC.
    G15082476Courtesy of TESLA, INC.
  11. Fold RH 2nd row seat to the down position.

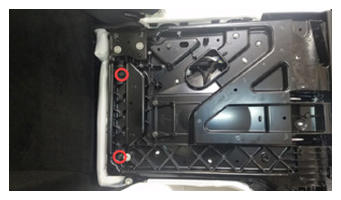

  12. Install the bolts (x2) that attach the RH 2nd row backrest cushion to the back frame.

    8 N.m (5.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15082477Courtesy of TESLA, INC.

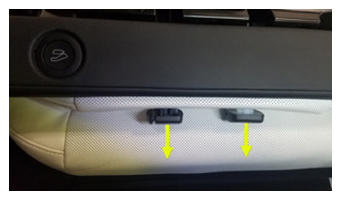

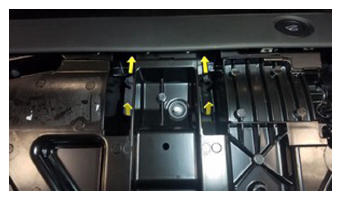

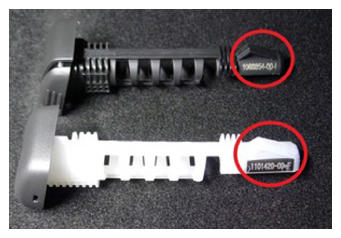

  13. Install the RH 2nd row backrest LH and RH headrest guides.
    NOTE: Slide the guides into the backrest frame. Ensure the headrest guide locking tabs are fully engaged. Guide with adjustment button installed inboard.
    G15082478Courtesy of TESLA, INC.
    G15082479Courtesy of TESLA, INC.
    G15082480Courtesy of TESLA, INC.
  14. Install the RH 2nd row headrest. See Headrest - 2nd Row - LH (Remove And Replace) .
  15. Install the RH 2nd row seat back panel. See Back Panel - 2nd Row Seat - RH (Remove And Replace) .

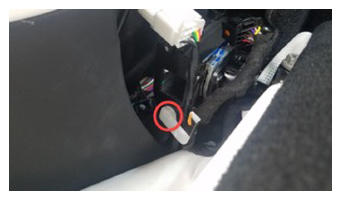

  16. Fasten the clip that attaches the RH 2nd row seat back harness to the pivot bracket.
    G15082481Courtesy of TESLA, INC.

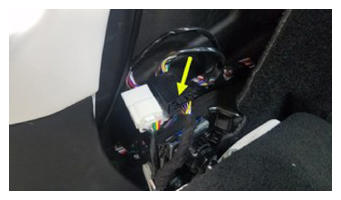

  17. Connect the RH 2nd row seat back harness electrical connector.
    G15082482Courtesy of TESLA, INC.
  18. Fold the RH 2nd row seat to the vertical position.
    NOTE: Remove the seat cushion protection if present.
  19. Install the RH 2nd row seat outer bolster. See Bolster - Outer - Seat - 2nd Row - LH (Remove And Replace)
