Cover - Side - Seat Back - 2nd Row - LH - Remove And Replace: Remove

  1. Move the driver seat forward.
  2. Open the LH rear door and lower the LH rear window.
  3. Fold the LH 2nd row seat to the down position.
    NOTE: If the 2nd row lower seat cushion is not present, protect the seat as required.
  4. Release the clips (x2) that attach the LH 2nd row seat back side cover to the LH 2nd row seat back, and then remove the cover from the vehicle.

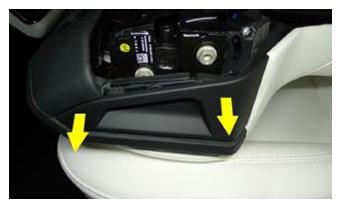

    G15082355Courtesy of TESLA, INC.

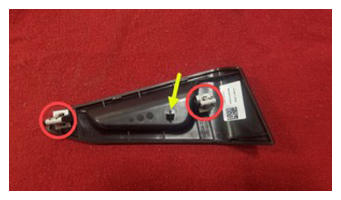

    G15082356Courtesy of TESLA, INC.
