Closeout - Armrest - 2nd Row - Remove And Replace: Replace

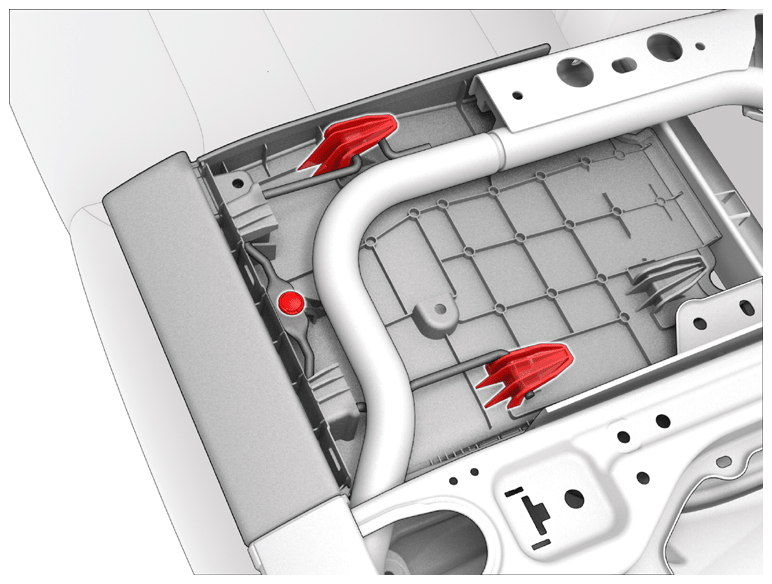

  1. Position the center armrest closeout tabs on to the backrest frame, and then install the clip that attaches the center armrest closeout to the backrest frame.
    G15082336Courtesy of TESLA, INC.
  2. Return the armrest to it's original position.
  3. Fold down the LH second row seat.

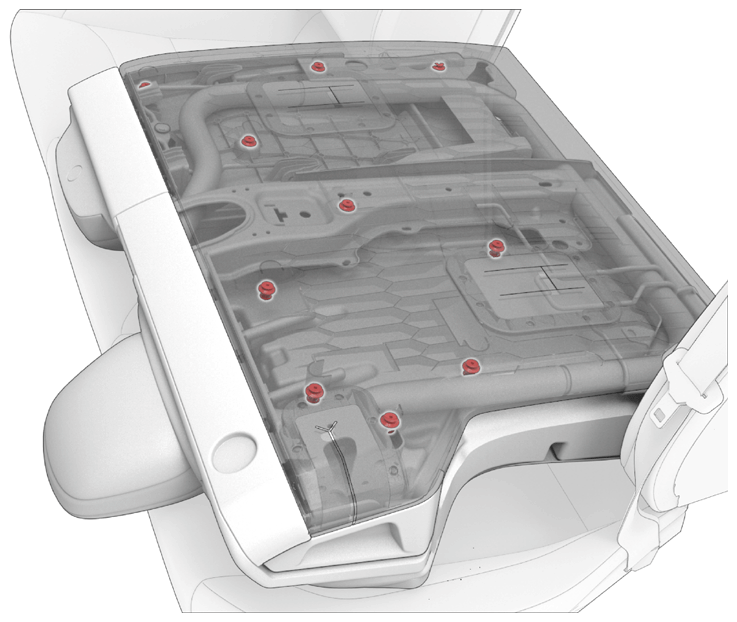

  4. Position the seat back panel to the seat, and then install the clips that attach the seat back panel to the seat.
    G15082337Courtesy of TESLA, INC.
  5. Raise the LH second row seat.
  6. Close the LH rear door.
  7. Install the parcel shelf. See Parcel Shelf - Rear Trunk (Remove and Replace) .
