Bracket - Pivot - Outboard - 2nd Row Seat - LH - Remove And Replace: Remove

  1. Remove the LH 2nd row seat back. See Seat Back - 2nd Row - LH (Remove And Replace) .

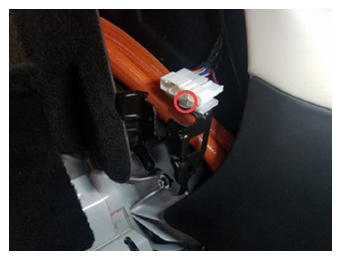

  2. Release the LH body harness from the LH 2nd row seat outboard pivot bracket.
    G15082302Courtesy of TESLA, INC.

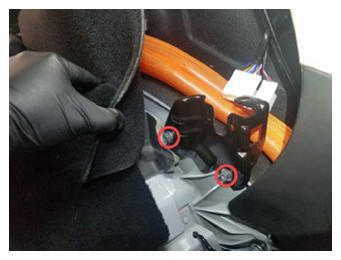

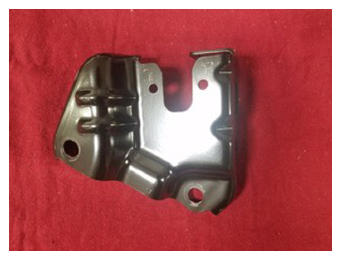

  3. Remove the bolts (x2) that attach the LH 2nd row seat outboard pivot bracket to the vehicle, and then remove the bracket from the vehicle.

    26 N.m (19.2 ft-lbs)

    NOTE: Slightly pull the side trim to access the rear bolt.

    Tip: Use of the following tool(s) is recommended:

    • 11 mm socket
    G15082303Courtesy of TESLA, INC.
    G15082304Courtesy of TESLA, INC.
