Light - Brake - High Mounted - Remove And Replace: Remove

  1. Remove the liftgate glass. See Liftgate Glass (Remove and Install) .
  2. Remove the CHMSL from liftgate glass assembly.

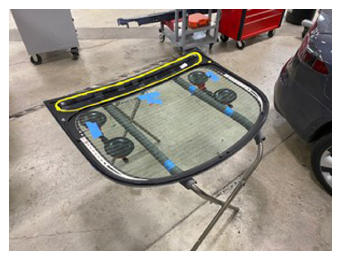

    G15092387Courtesy of TESLA, INC.
