V Bar - Fascia - Front - Remove And Replace: Install

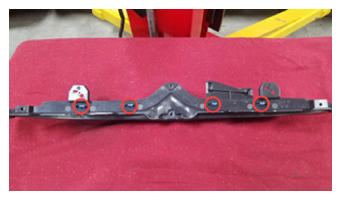

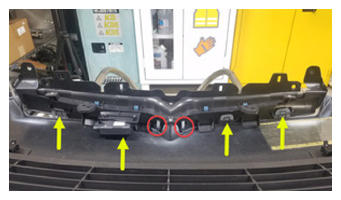

Position the front fascia V-bar onto the T-badge support, and then fasten the clips (x4) that attach the V-bar to the T-badge support.

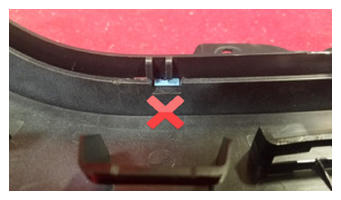

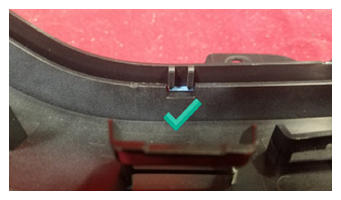

NOTE: Align the V-bar guides with the T-badge support gap.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

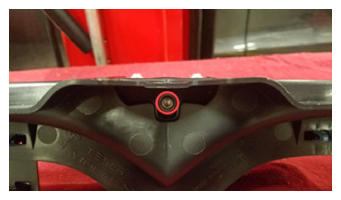

Install the screws that attach the front fascia V-bar to the T-badge support.
Torque 3 N.m

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 4 in extension
Courtesy of TESLA, INC.

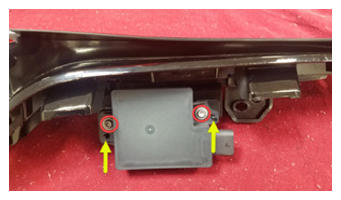

Position the front BLE assembly onto the T-badge support, and then install the screws that attach the front BLE assembly to the T-badge support.
Torque 3 N.m

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 4 in extension
Courtesy of TESLA, INC.

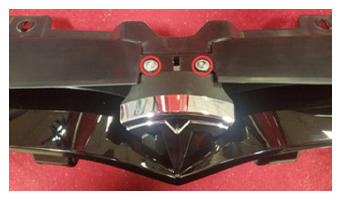

Position the front fascia T-badge onto T-badge support, and then install the screws (x3) that attach the T-badge to the support.
Torque 3 N.m

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 4 in extension
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

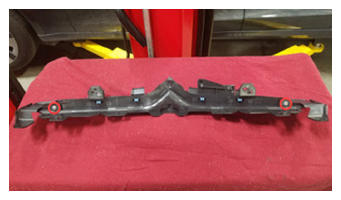

Install the T-badge support onto the front fascia assembly.

Courtesy of TESLA, INC.

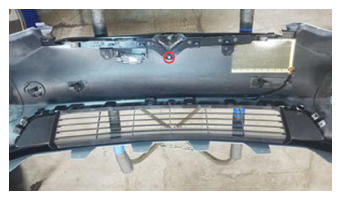

Install the screw that attaches the T-badge support to the front fascia assembly.
Torque 3 N.m

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
- 4 in extension
Courtesy of TESLA, INC.

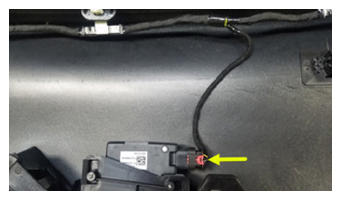

Connect the front BLE assembly electrical connector.
NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

Courtesy of TESLA, INC.
Install the front fascia assembly. See Fascia Assembly - Front (Remove And Install) .
